Produktbeskrivning

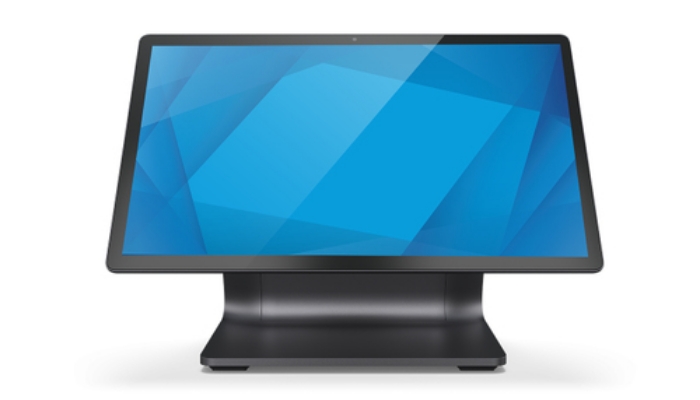

EloPOS Z30 for Android.
Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and Android 10 OS, the EloPOS Z30 brings one of the sleekest form factors to the market.
Powerful Touchscreen
The EloPOS Z30 offers a fully integrated 15.6-inch full HD interactive display.
Integrated I/O
From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
Single Cable Connection
Connect a secondary display with a single USB‑C cable that provides touch, video and power.
Interactive display for customers.
With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.
Secure it.
The Z30 is designed to stay in place without being secured, but if permanent mounting is required, easily
аffix your POS terminal to any counter or surface.
Commercial-grade performance.
Whether equipped with the Qualcomm Snapdragon 8-core Kryo processor or the Rockchip 6-core processor, the EloPOS Z30 for Android delivers the performance your point-of-sale system needs.
Viktiga egenskaper
Elo Touch Solutions EloPOS Z30. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, Display type: TFT. Processor family: Rockchip, Processor model: RK3399. Internal memory: 4 GB. Total storage capacity: 32 GB, Storage media: Flash. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Teknisk specifikation
Display
| Display diagonal | 15.6 " |
|---|
| Display resolution | 1920 x 1080 pixels |
|---|
| Touchscreen | Yes |
|---|
| Display type | TFT |
|---|
| Response time | 20 ms |
|---|
| Effective viewing area | 344 x 194 mm |
|---|
| Viewing angle, horizontal | 170 ° |
|---|
| Display number of colours | 16.78 million colours |
|---|
| Touchscreen technology | Projected capacitive system |
|---|
| Display brightness | 350 cd/m² |
|---|
| Viewing angle, vertical | 170 ° |
|---|
| Contrast ratio (typical) | 1000:1 |
|---|
| Second display | Yes |
|---|
| Second display diagonal | 10.1 " |
|---|
Processor
| Processor family | Rockchip |
|---|
| Processor model | RK3399 |
|---|
Memory
| Internal memory | 4 GB |
|---|
Storage
| Total storage capacity | 32 GB |
|---|
| Storage media | Flash |
|---|
Multimedia
| Built-in speaker(s) | Yes |
|---|
| Number of speakers | 2 |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Bluetooth | Yes |
|---|
| Wi-Fi | Yes |
|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|
| DC-in jack | Yes |
|---|
Design
| Product colour | Black |
|---|
Software
| Operating system installed | Android 10 |
|---|
Power
| AC input voltage | 100-240 V |
|---|
| AC input frequency | 50-60 Hz |
|---|
| Power consumption (typical) | 17.84 W |
|---|
Operational conditions
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage temperature (T-T) | -20 - 50 °C |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Ergonomics
| VESA mounting | Yes |
|---|
| Panel mounting interface | 75 x 75 mm |
|---|
| Mean time between failures (MTBF) | 50000 h |
|---|
Weight & dimensions
| Width | 371 mm |
|---|
| Depth | 188 mm |
|---|
| Height | 294 mm |
|---|
| Weight | 4400 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 463 mm |
|---|
| Package depth | 285 mm |
|---|
| Package height | 448 mm |
|---|
| Package weight | 7750 g |
|---|
