Produktbeskrivning

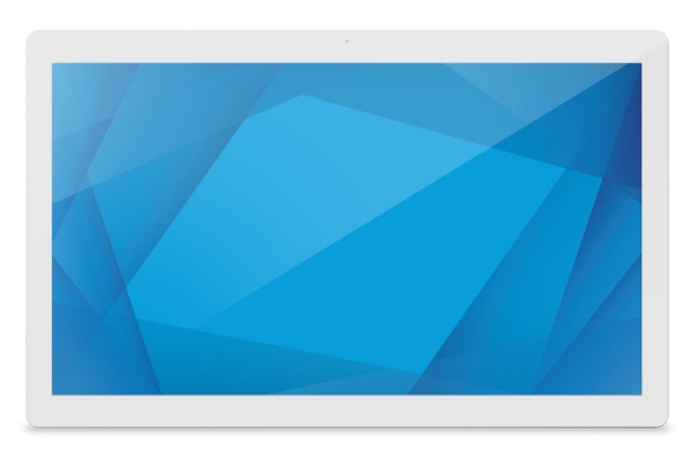

22-inch I-Series 5
Touchcomputer
Elo’s I-Series delivers the modularity businesses need into a sleek and durable fixed tablet form factor. Complete with a 22-inch Full HD touch display, flexible Android 14 OS, powerful Qualcomm 6490 processor, WiFi 6E, optional POE and four edge connect ports, the I-Series provides the versatility to fit almost any application.

Modular design.
Endless versatility.
Available in sizes ranging from 10 to 22 inches, easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

- Universal VESA Mount. Conveniently mount the I-Series with the built-in VESA mount.
- Expand with Edge Connect. Seamlessly attach a variety of peripherals to the edge of the touchscreen.
- Power-Over-Ethernet (POE). Say goodbye to the expense of power drops with the POE adapter with the I-Series and a POE-capable network.
- Camera & Microphone. The I-Series includes a 8MP camera and 2x digital microphones to support select application requirements.

Place it at the point-of-sale.

Create engaging interactive signage.

Drive endless self- service experiences.

Enhanced connectivity for all your accessories.
- USB-C full featured
- 1x LAN (Gigabit)
- GPIO
- USB 3.0
- 4x Micro-USB Edge Connect
- WiFi 6E & Bluetooth 5.2

Get enterprise support with Elo EssentialEdge.
With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.

OS 360 – Take advantage of monthly security updates to keep your devices secure.

Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.

Elo OEMConfig – Get Elo’s proprietary APIs on your preferred Android MDM platform, saving months of effort as new releases become available.

Commercial-grade performance.
The I-Series is backed by the powerful Qualcomm 6490 octa-core processor to deliver the performance businesses need.

Expand possibilities with Applied AI.
The Qualcomm 6490 chipset offers a fused AI accelerator, enabling astonishing performance at low power. These features and more produce a combined AI performance of up to 12 TOPS.

Manage your devices easily with EloView.
EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.
Remotely deploy content and manage your devices securely.
Provision your devices in seconds with a seamless out-of-the-box experience.
Leverage Elo Home to create a customized interface on your Elo device.

Google Mobile Services Ready.
With Google Mobile Services and EloView, managing Android devices and your apps is simplified. You can remotely deploy and manage your device, adjust detailed settings, and take advantage of the latest Google-powered features. Not only does this make management easier, but it also ensures your Elo devices meet the high standards required for Google CTS verification, giving you peace of mind.



Viktiga egenskaper

Elo Touch Solutions I-Series 5. Product design: Digital signage flat panel. Display diagonal: 54.6 cm (21.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating system installed: Android. Product colour: White



Teknisk specifikation

Display diagonal	21.5 "
Display technology	LED
Panel type	TFT-LCD
Display resolution	1920 x 1080 pixels
Display brightness	250 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Multi-touch	Yes
Number of simultaneous touchpoints	10
Response time	14 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Active display area (W x H)	476 x 268 mm
Display diagonal (metric)	546.1 cm
Number of displays	1
Native refresh rate	60 Hz

DisplayPorts quantity	1
DisplayPorts out	1
USB port	Yes
USB ports quantity	4
USB connector type	USB Type-A,USB Type-C
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	2 W

Product design	Digital signage flat panel
Product colour	White
Placement supported	Indoor
Orientation	Horizontal/Vertical
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75 mm

Purpose	Commercial
Number of microphones	2
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	15.2 W
Power consumption (sleep)	3 W
Power consumption (off)	0.4 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Built-in processor	Yes
Processor cores	8
Internal memory	8 GB
Internal storage capacity	64 GB
Operating system installed	Android
Operating system version	Android 14

Display width	524.8 mm
Display depth	29.7 mm
Display height	324.8 mm
Display weight	3800 g

Package width	590 mm
Package depth	168 mm
Package height	400 mm
Package weight	5600 g

Cables included	Power

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 50 °C
Storage relative humidity (H-H)	10 - 90 %

Certification	UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia)

Aspect ratio	16:9
Megapixel (approx.)	8 MP
Built-in camera	Yes
