Produktbeskrivning

The newly upgraded I-Series 2.0 for Android combines commercial-grade reliability with the powerful Qualcomm® Snapdragon™ processor. Delivering 2x the performance of its predecessor, the I-Series brings it all together with an integrated TouchPro® PCAP 10-touch display, Android 7.1 (Nougat) and optional Power-over-Ethernet (POE) – all in a compact responsive all-in-one (AiO) computer. Available in white and black, the I-Series 2.0 AiO offers a variety of mounting options and delivers flexibility for the rigors of continuous public use for in-store interaction, point of sale, self-service, wayfinding, corporate and hospitality environments.EloView, the secure platform for remote content deployment and device management, makes deploying and managing the I-Series easy. Since the I-Series and EloView are designed and tested by the same manufacturer, all the features are in sync and the devices set up automatically when connected. Whether you need to push new content to a device or simply need to change the screen brightness, EloView is ready.

I-Series for Everything
The Elo I-Series 2.0 offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.

Features to Match Your Needs
Does black or white match your design? All I-Series 2.0 models are offered in black (standard) or white (built-to-order). Do you need to connect peripherals to your device? How much memory and storage capacity do you need? Standard and Value models are offered in the 10-inch and 15-inch sizes, both providing the same performance and processor. What is the difference? The standard model offers more memory and storage, ports for peripheral mounting to the device, and a webcam.

Power over Ethernet
I-Series 2.0 doesn’t need a power adapter to connect.

The new Power-over-Ethernet (POE) module is an optional accessory you can pair with all I-Series 2.0 Models. All you need is a POE capable network.

Where power drops can be expensive, running low voltage network cables allows for a lower cost solution. POE represents an easy to implement solution for shelf signage and AV applications like conference room schedulers or AV control displays.

EloView
A revolutionary interactive platform connecting hardware and software that is easy to use, quick to deploy and affordable. EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView delivers.

EloView is a software-as-a-service (SaaS) platform designed to simplify and automate the configuration and deployment of interactive displays across multiple locations. Use EloView to deliver your marketing content and create attractive, engaging, and educational public-facing interactive experiences.

Virtual GPS via EloView
Often, applications depend upon the GPS location of individual devices to understand what content to display. But GPS may not work indoors and can be expensive to add to a device that spends most of its life fixed to a specific location.

With EloView, you can set the location (latitude/ longitude) of the device remotely allowing the application to sync with the GPS coordinates and run localized content.

Built-to-Last
The I-Series AiO Touchscreen Signage displays deliver the quality and reliability Elo is known for and are backed by our 2-year standard warranty with an optional extension to 4-years. We design and build the complete solution, with touch integrated from the start.



Viktiga egenskaper

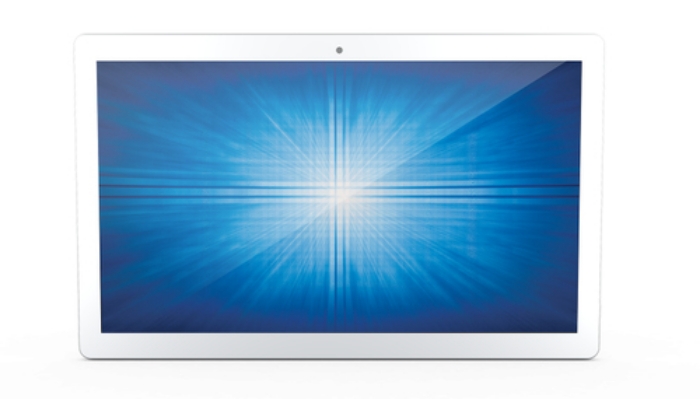

Elo Touch Solutions I-Series 2.0. Product type: All-in-One tablet PC. Display diagonal: 54.6 cm (21.5"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Screen shape: Flat. Processor family: Snapdragon, Processor frequency: 2 GHz. Internal memory: 3 GB, Internal memory type: DDR3L-SDRAM. Total storage capacity: 32 GB, Storage media: SSD. Built-in camera. Operating system installed: Android 7.1. Product colour: White



Teknisk specifikation

Display diagonal	21.5 "
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Response time	14 ms
Panel type	TFT
Multi-touch	Yes
Viewing angle, horizontal	178 °
Screen shape	Flat
Contrast ratio (typical)	1000:1
Display number of colours	16.78 million colours
Viewing angle, vertical	178 °

Processor manufacturer	Qualcomm
Processor family	Snapdragon
Processor model	APQ8053
Processor cores	8
Processor frequency	2 GHz

Internal memory	3 GB
Internal memory type	DDR3L-SDRAM

Total storage capacity	32 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	32 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Built-in camera	Yes
Camera resolution	1920 x 1080 pixels
Camera HD type	Full HD

Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Micro HDMI ports quantity	1
Micro-USB ports quantity	4

Product colour	White
VESA mounting	Yes
Panel mounting interface	100 x 100 mm

Product type	All-in-One tablet PC

Operating system installed	Android 7.1

AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Power consumption (off)	0.5 W
Power consumption (standby)	4 W
Power consumption (typical)	16 W

Pen included	No

Width (without stand)	523.9 mm
Depth (without stand)	35.2 mm
Height (without stand)	323.9 mm
Weight (without stand)	4300 g
Package width	600 mm
Package depth	180 mm
Package height	400 mm
Package weight	7300 g

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Mouse included	No
Quick start guide	Yes
Cables included	AC

3D	No
Detachable display	Yes
