Produktbeskrivning

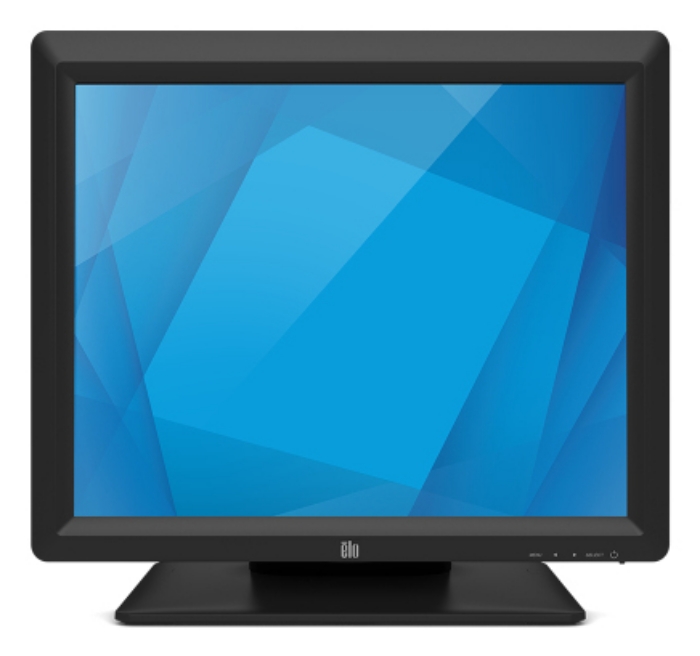

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Integrated touch

The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.

MSR ready

The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

Flexible mounting.

The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.



Viktiga egenskaper

Elo Touch Solutions 1517L. Display diagonal: 38.1 cm (15"), Display technology: LED, Display resolution: 1024 x 768 pixels, Display brightness: 270 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	15 "
Display technology	LED
Panel type	TFT
LED backlight	Yes
Display resolution	1024 x 768 pixels
Display brightness	270 cd/m²
Touchscreen	Yes
Touchscreen technology	Resistive
Native aspect ratio	4:3
Response time	23 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
Viewing angle, vertical	150 °
Display number of colours	16.2 million colours
Horizontal scan range	31.5 - 60 kHz
Vertical scan range	56 - 75 Hz

HDMI ports quantity	1
DVI port	No
USB port	Yes

Built-in speaker(s)	No

Product colour	Black
Placement supported	Indoor
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75 mm

Purpose	Commercial
Number of OSD languages	8
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,JPN
On Screen Display (OSD)	Yes

Power consumption (typical)	10.5 W
Power consumption (standby)	1.4 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Computer system	No
Built-in processor	No

Display width	358 mm
Display depth	285 mm
Display height	44.1 mm
Width (with stand)	358 mm
Depth (with stand)	197 mm
Height (with stand)	319 mm
Weight (with stand)	4300 g

Package width	487 mm
Package depth	231 mm
Package height	485 mm
Package weight	7300 g

Stand included	Yes
Cables included	AC,USB,VGA

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90 %

Certification	UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE

Harmonized System (HS) code	85285210

Wall mountable	Yes

Compliance certificates	CE,RoHS
Sustainability compliance	Yes

Built-in microphone	No
LED indicators	Yes
Viewable size, horizontal	228.1 mm
Viewable size, vertical	304.13 mm
Built-in camera	No
