Produktbeskrivning

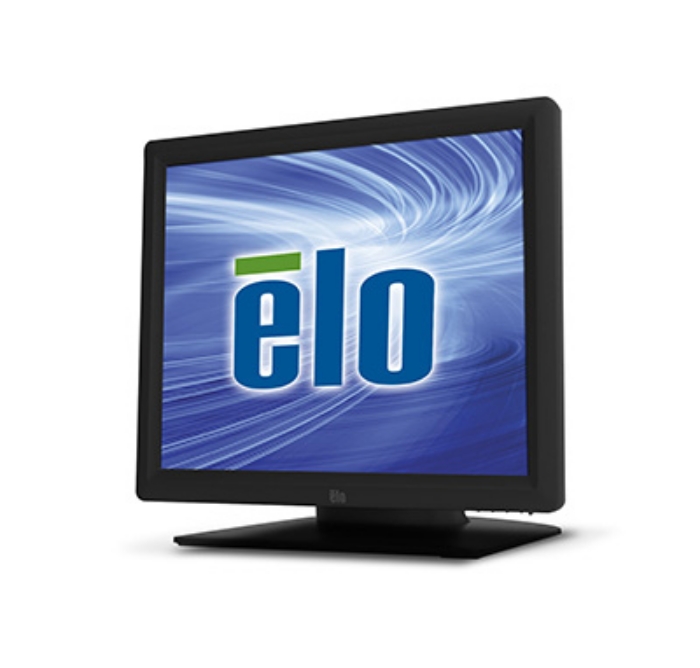

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

- Sleek and thin design with “built for touch” reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.



Viktiga egenskaper

Elo Touch Solutions 1517L Rev B. Display diagonal: 38.1 cm (15"), Display technology: LCD, Display resolution: 1024 x 768 pixels, Display brightness: 225 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	15 "
Display technology	LCD
LED backlight	Yes
Display resolution	1024 x 768 pixels
Display brightness	225 cd/m²
Touchscreen	Yes
Native aspect ratio	4:3
Response time	16 ms
Contrast ratio (typical)	700:1
Viewing angle, horizontal	160 °
Viewing angle, vertical	140 °
Display number of colours	16.78 million colours
Native refresh rate	60 Hz
Supported graphics resolutions	720 x 400,1024 x 768 (XGA),640 x 480 (VGA),800 x 600 (SVGA)
Vertical scan range	56 - 75 Hz
Horizontal scan range	31.5 - 60 kHz

HDMI ports quantity	0
DisplayPorts quantity	0

Product colour	Black
Screen shape	Flat
Panel mounting interface	75 x 75 mm

Number of OSD languages	8
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	12 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Width (with stand)	358 mm
Depth (with stand)	197 mm
Height (with stand)	319 mm
Weight (with stand)	4300 g

Package width	487 mm
Package depth	231 mm
Package height	485 mm
Package weight	7300 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90 %

Harmonized System (HS) code	85285210

Dimensions (W x D x H) with stand	358 x 197 x 319 mm
Display viewable area (HxV)	228 x 304 mm
Power supply type	AC/DC
Aspect ratio	4:3
Voltage tolerance	5 %
