Produktbeskrivning

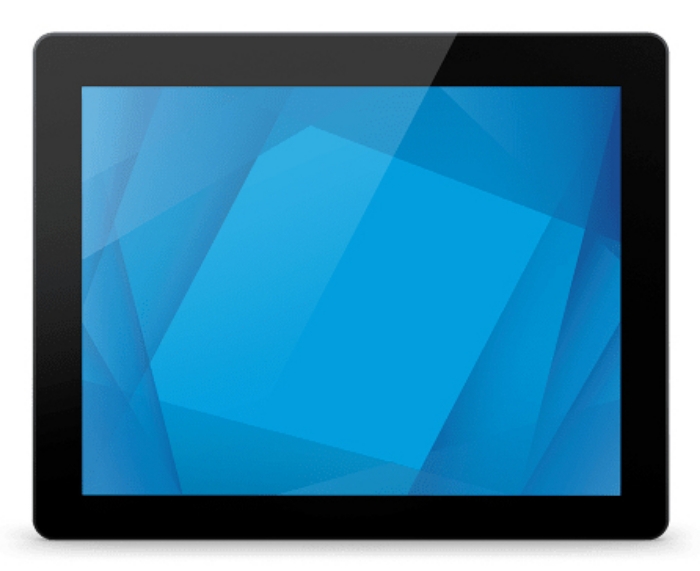

The Elo 1590L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, the 1590L open frame deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Enabling Partners to Build Smarter Kiosks
With EloView and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install
The 1590L can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru Glass
Enabled with PCAP
Our TouchPro PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.



Viktiga egenskaper

Elo Touch Solutions 1590L. Product design: Interactive flat panel. Display diagonal: 38.1 cm (15"), Display technology: LCD, Display resolution: 1024 x 768 pixels, Display brightness: 225 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	15 "
Display technology	LCD
LED backlight	Yes
Display resolution	1024 x 768 pixels
Display brightness	225 cd/m²
Touchscreen	Yes
Touchscreen technology	Capacitive
Response time	16 ms
Contrast ratio (typical)	700:1
Viewing angle, horizontal	160 °
Viewing angle, vertical	140 °
Touch response time	23 ms
Vertical scan range	50 - 75 Hz
Native refresh rate	60 Hz
Horizontal scan range	30 - 60 kHz

HDMI ports quantity	1
HDMI version	1.3
VGA (D-Sub) input ports	1
DisplayPorts quantity	1
DisplayPort version	1.1a
USB port	Yes
USB connector type	USB Type-B
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Product design	Interactive flat panel
Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75 mm

Purpose	Commercial
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	12.5 W
Power consumption (sleep)	1.5 W
Power consumption (off)	0.5 W

Display width	336.4 mm
Display depth	264.4 mm
Display height	41.9 mm
Display weight	2900 g

Package width	434 mm
Package depth	175 mm
Package height	375 mm
Package weight	4700 g

Cables included	VGA,HDMI,USB

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Harmonized System (HS) code	85285210

Wall mountable	Yes

Compliance certificates	RoHS
