Produktbeskrivning

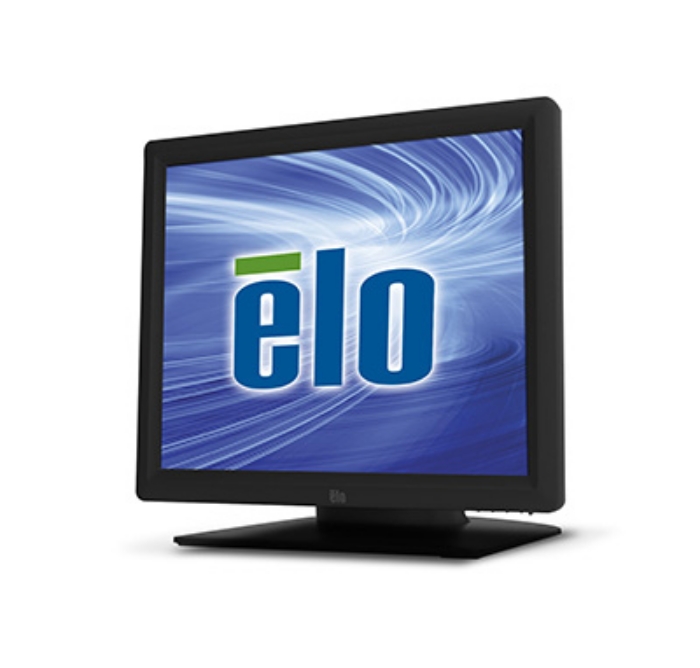

The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.
The 1717L is offered with AccuTouch five-wire resistive technology, IntelliTouch surface acoustic wave, or iTouch pure glass surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Viktiga egenskaper
Elo Touch Solutions 1717L. Display diagonal: 43.2 cm (17"), Display technology: LCD, Display resolution: 1280 x 1024 pixels, Display brightness: 225 cd/m², Touchscreen. Product colour: Black
Teknisk specifikation
Display
| Display diagonal | 17 " |
|---|
| Display technology | LCD |
|---|
| Display resolution | 1280 x 1024 pixels |
|---|
| Display brightness | 225 cd/m² |
|---|
| Touchscreen | Yes |
|---|
| Native aspect ratio | 5:4 |
|---|
| Response time | 5 ms |
|---|
| Contrast ratio (typical) | 1000:1 |
|---|
| Display number of colours | 16.78 million colours |
|---|
| Native refresh rate | 60 Hz |
|---|
Ports & interfaces
| HDMI ports quantity | 0 |
|---|
| DisplayPorts quantity | 0 |
|---|
Design
| Product colour | Black |
|---|
| Screen shape | Flat |
|---|
| Panel mounting interface | 75 x 75 mm |
|---|
Performance
| Mean time between failures (MTBF) | 50000 h |
|---|
Power
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Weight & dimensions
| Weight (with stand) | 5400 g |
|---|
Packaging data
| Package width | 511 mm |
|---|
| Package depth | 233 mm |
|---|
| Package height | 510 mm |
|---|
| Package weight | 8300 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
Logistics data
| Harmonized System (HS) code | 85285210 |
|---|
Features
| Wall mountable | Yes |
|---|
Other features
| Depth (without stand) | 215 mm |
|---|
| Height (without stand) | 361 mm |
|---|
| Power supply type | AC |
|---|
| Aspect ratio | 5:4 |
|---|
