Produktbeskrivning

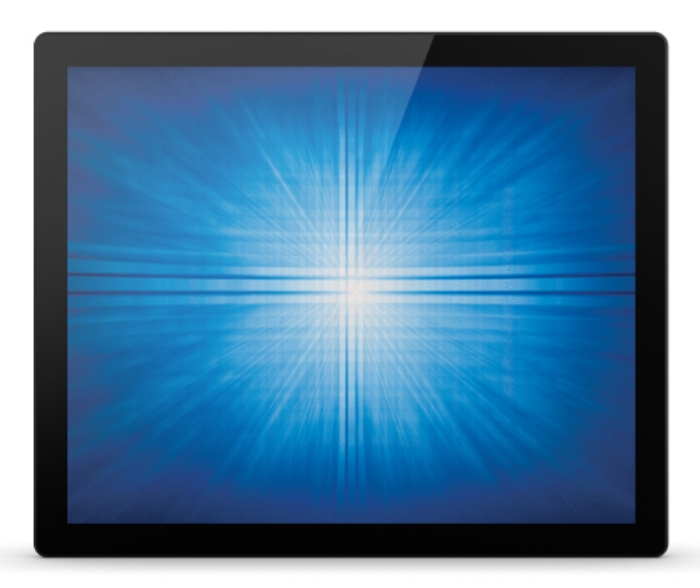

The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- LED backlighting allows for state-of-the-art slim design while reducing power consumption
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
Viktiga egenskaper
Elo Touch Solutions 1990L. Product design: Interactive flat panel. Display diagonal: 48.3 cm (19"), Display technology: LED, Display resolution: 1280 x 1024 pixels, Display brightness: 225 cd/m², Touchscreen. Product colour: Black
Teknisk specifikation
Display
| Display diagonal | 19 " |
|---|
| Display technology | LED |
|---|
| Display resolution | 1280 x 1024 pixels |
|---|
| Display brightness | 225 cd/m² |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen technology | Projected capacitive system |
|---|
| Response time | 5 ms |
|---|
| Contrast ratio (typical) | 1000:1 |
|---|
| Viewing angle, horizontal | 170 ° |
|---|
| Viewing angle, vertical | 160 ° |
|---|
| Display number of colours | 16.78 million colours |
|---|
| Supported graphics resolutions | 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800 (WXGA) |
|---|
| Vertical scan range | 50 - 75 Hz |
|---|
| Horizontal scan range | 30 - 82 kHz |
|---|
Ports & interfaces
| HDMI ports quantity | 1 |
|---|
| DVI port | No |
|---|
| DisplayPorts quantity | 1 |
|---|
| USB port | Yes |
|---|
| Ethernet LAN | Yes |
|---|
Audio
| Built-in speaker(s) | No |
|---|
Design
| Product design | Interactive flat panel |
|---|
| Product colour | Black |
|---|
| Placement supported | Indoor |
|---|
| Screen shape | Flat |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 100 mm |
|---|
Performance
| Purpose | Commercial |
|---|
| Number of OSD languages | 8 |
|---|
| On Screen Display (OSD) languages | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN |
|---|
| Mean time between failures (MTBF) | 50000 h |
|---|
Power
| Power consumption (typical) | 22 W |
|---|
| Power consumption (standby) | 1.5 W |
|---|
| Power consumption (off) | 0.5 W |
|---|
| AC input voltage | 230 V |
|---|
| AC input frequency | 50 Hz |
|---|
Packaging data
| Package width | 526 mm |
|---|
| Package depth | 450 mm |
|---|
| Package height | 190 mm |
|---|
| Package weight | 7000 g |
|---|
Packaging content
| Cables included | HDMI,USB,VGA |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 10 - 95 % |
|---|
| Operating altitude | 0 - 3.048 m |
|---|
Logistics data
| Harmonized System (HS) code | 85285210 |
|---|
Features
| Wall mountable | Yes |
|---|
Other features
| Height (without stand) | 342.7 mm |
|---|
| Aspect ratio | 5:4 |
|---|
| Display viewable area (HxV) | 376.32 x 301.06 mm |
|---|
| Depth (without stand) | 50 mm |
|---|
| Built-in microphone | No |
|---|
| Weight (without stand) | 4600 g |
|---|
| Built-in camera | No |
|---|
