The touchmonitor just got better.

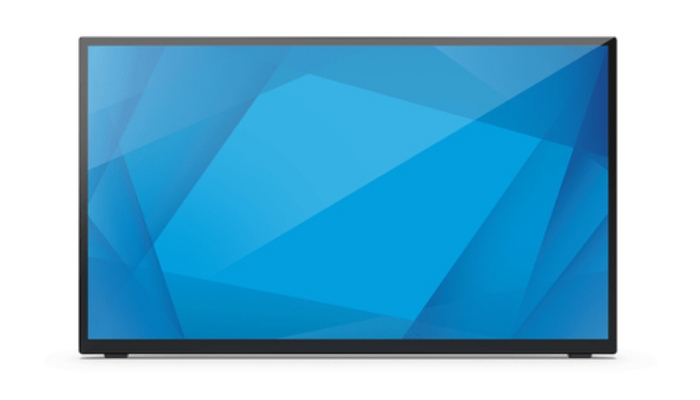

Elo 2470L 24" Full HD Touchscreen Monitor

The bezel just got smaller.
The 2470L 24” touchscreen offers up to a 70% reduction in the bezel compared to similar models.

Minimalistic design to fit any space.

From 20 degrees to 70 degrees, angle the display where you want it.

Place it on a desktop, mount it on a wall or configure the 2470L to fit your space with VESA-compatibility.

Scratch-resistant glass surface
- IK07 impact resistant
- ES8.0 certified for greater
- energy efficiency

Increase viewing comfort with low blue light and flicker free features.

Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.



Viktiga egenskaper

Elo Touch Solutions E510459. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 16 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black



Teknisk specifikation

Display diagonal	23.8 "
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	Yes
HD type	4K Ultra HD
Panel type	TFT
Touchscreen technology	Capacitive
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Response time	16 ms
Anti-glare screen	No
Screen shape	Flat
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.67 billion colours
Horizontal scan range	30 - 82 kHz
Vertical scan range	50 - 75 Hz

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	20 W

Product colour	Black
Certification	UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC

Built-in USB hub	Yes
USB upstream port type	USB Type-A,USB Type-B
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Audio input	Yes
Audio output	Yes

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
On Screen Display (OSD)	Yes

Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	12 kWh
Power consumption (typical)	13.8 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.16 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 95 %

Cables included	AC,HDMI,USB
Quick start guide	Yes

Width (without stand)	550.2 mm
Depth (without stand)	41.8 mm
Height (without stand)	329.3 mm
Weight (without stand)	4800 g

Package width	630 mm
Package depth	418 mm
Package height	136 mm
Package weight	7100 g

Sustainability certificates	ENERGY STAR

Compliance certificates	RoHS

Mean time between failures (MTBF)	50000 h
