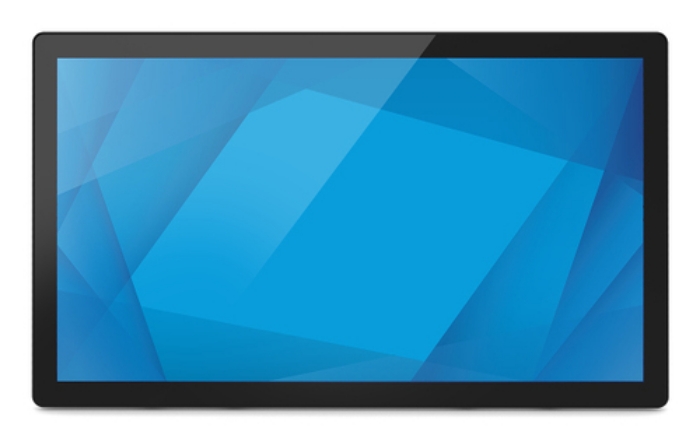

Elo 2794L Open Frame Touchscreen Display
The Elo 2794L 27-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru Glass. Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.



Viktiga egenskaper

Elo Touch Solutions 2494L. Product design: Interactive flat panel. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 225 cd/m², HD type: Full HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	23.8 "
Display technology	LCD
LED backlight	Yes
Panel type	TFT
Display resolution	1920 x 1080 pixels
Display brightness	225 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	16 ms
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours

HDMI ports quantity	1
HDMI version	1.3a
DisplayPorts quantity	1
DisplayPort version	1.1a
Ethernet LAN (RJ-45) ports	1

Product design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
Screen shape	Flat
VESA mounting	Yes

Purpose	Commercial
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,JPN
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	15.24 W
Power consumption (standby)	1.07 W
Power consumption (off)	0.2 W
Power consumption (max)	17.46 W
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	26 kWh
Energy efficiency scale	A to G

Display width	562.4 mm
Display depth	41.7 mm
Display height	326.6 mm
Display weight	6170 g

Package width	692 mm
Package depth	190 mm
Package height	452 mm
Package weight	8070 g

Cables included	HDMI,USB,VGA

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Wall mountable	Yes

Compliance certificates	RoHS

Maximum refresh rate	60 Hz
Display viewable area (HxV)	527.04 x 296.46 mm
Height (without stand)	341.1 mm
Depth (without stand)	38 mm
Viewable size, horizontal	527.04 mm
Viewable size, vertical	296.46 mm
Digital vertical frequency	50 - 75 Hz
Weight (without stand)	6170 g
Digital horizontal frequency	30 - 82 kHz
Built-in camera	No
