Produktbeskrivning

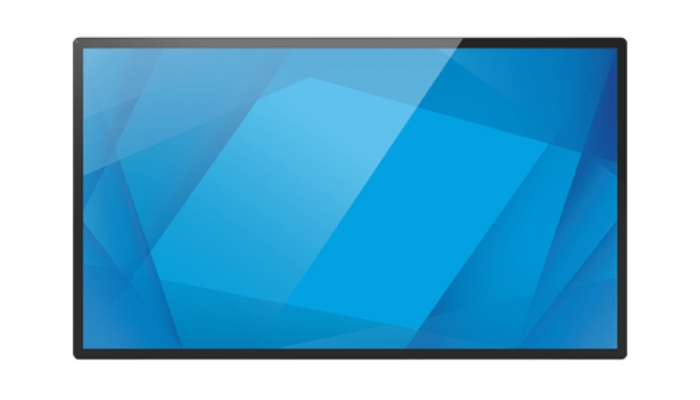

Elevate your applications with Elo’s 6554L 65‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 6554L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 65‑inch tablet.
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.
Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.
Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.
Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 6554L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.
Touch Thru Glass Enabled with PCAP With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Versatile mounting options for commercial interactive displays.Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 6554L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 6554L for diverse international markets.
Viktiga egenskaper
Elo Touch Solutions 6554L 65". Product design: Interactive flat panel. Display diagonal: 163.8 cm (64.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 430 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black
Teknisk specifikation
Display
| Display diagonal | 64.5 " |
|---|
| Display technology | LCD |
|---|
| LED backlight | Yes |
|---|
| Panel type | LCD |
|---|
| Display resolution | 3840 x 2160 pixels |
|---|
| Display brightness | 430 cd/m² |
|---|
| HD type | 4K Ultra HD |
|---|
| Touchscreen | Yes |
|---|
| Multi-touch | Yes |
|---|
| Number of simultaneous touchpoints | 40 |
|---|
| Native aspect ratio | 16:9 |
|---|
| Response time | 8 ms |
|---|
| Contrast ratio (typical) | 1100:1 |
|---|
| Viewing angle, horizontal | 178 ° |
|---|
| Viewing angle, vertical | 178 ° |
|---|
| Display number of colours | 1.07 billion colours |
|---|
| Active display area (W x H) | 1428.48 x 803.5 mm |
|---|
| Horizontal scan range | 30 - 135 kHz |
|---|
| Vertical scan range | 24 - 64 Hz |
|---|
Ports & interfaces
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.0 |
|---|
| DVI port | No |
|---|
| DisplayPorts quantity | 1 |
|---|
| DisplayPort version | 1.4 |
|---|
| USB port | Yes |
|---|
| USB ports quantity | 2 |
|---|
| USB connector type | Mini-USB A,USB Type-A |
|---|
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Wi-Fi | No |
|---|
Audio
| Built-in speaker(s) | Yes |
|---|
| Number of built-in speakers | 2 |
|---|
| RMS rated power | 20 W |
|---|
Design
| Product design | Interactive flat panel |
|---|
| Product colour | Black |
|---|
| Placement supported | Indoor |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 600 x 600 mm |
|---|
Performance
| Purpose | Universal |
|---|
| Operating hours (hours/days) | 24/7 |
|---|
| HDCP | Yes |
|---|
Power
| Power consumption (typical) | 157 W |
|---|
| Power consumption (standby) | 0.7 W |
|---|
| Power consumption (sleep) | 2 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Weight & dimensions
| Width | 1490.6 mm |
|---|
| Depth | 865.5 mm |
|---|
| Height | 85.1 mm |
|---|
| Weight | 50000 g |
|---|
Packaging data
| Package width | 1750 mm |
|---|
| Package depth | 1150 mm |
|---|
| Package height | 280 mm |
|---|
| Package weight | 60000 g |
|---|
Packaging content
| Cables included | AC,USB |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 10 - 95 % |
|---|
Certificates
| Certification | UL, FCC, cUL, IC (Canada), CB, CE, VCCI, RCM, CCC/CEL, China RoHS, NOM, UL60950, IK07 |
|---|
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
Other features
| Maximum refresh rate | 60 Hz |
|---|
