Produktbeskrivning

I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.

Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.

Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.

Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.

Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.

Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.

Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.



Viktiga egenskaper

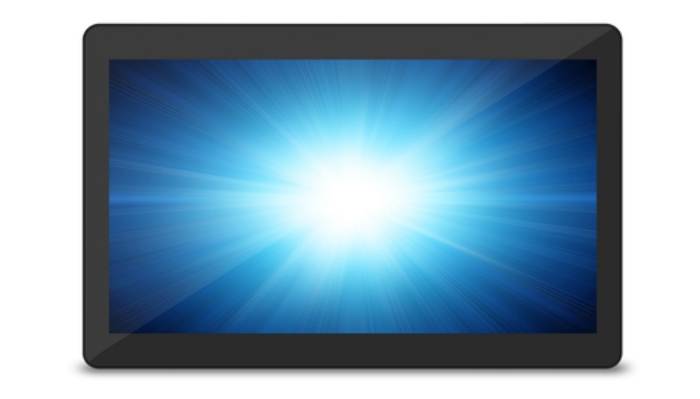

Elo Touch Solutions I-Series E850204. Product type: All-in-One tablet PC. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Screen shape: Flat. Processor family: Intel® Core™ i3, Processor frequency: 3.1 GHz. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics 630. Operating system installed: Windows 10. Product colour: Black



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Response time	25 ms
Screen shape	Flat

Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	8th gen Intel® Core™ i3
Processor model	i3-8100T
Processor cores	4
Processor threads	4
Processor frequency	3.1 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
System bus rate	8 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	35 W
Configurable TDP-down frequency	2.4 GHz
Configurable TDP-down	25 W
PCI Express configurations	1x16,1x8+2x4,2x8
Stepping	B0
Processor codename	Coffee Lake
Maximum number of PCI Express lanes	16
Bus type	DMI3
PCI Express slots version	3.0
Processor operating modes	64-bit
Processor socket	LGA 1151 (Socket H4)
Processor code	SR3Y8
Processor lithography	14 nm
Tjunction	82 °C
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Memory bandwidth supported by processor (max)	37.5 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes

Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2666 MHz
Memory layout (slots x size)	1 x 8 GB

Total storage capacity	128 GB
Storage media	SSD
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
On-board graphics card dynamic frequency (max)	1100 MHz
Number of displays supported (on-board graphics)	3
On-board graphics card 4K support	Yes
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E91

Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W

Built-in camera	No

Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
HDMI ports quantity	0
Headphone outputs	1

Product colour	Black
Panel mounting interface	75 x 75 mm
VESA mounting	Yes

Product type	All-in-One tablet PC
Motherboard chipset	Intel® H310
Trusted Platform Module (TPM)	Yes

Operating system installed	Windows 10

Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Virtualization Technology (VT-x)	Yes
Idle States	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Clear Video Technology	Yes
Processor package size	37.5 x 37.5 mm
Intel® OS Guard	Yes
Embedded options available	Yes
Thermal Monitoring Technologies	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel Enhanced Halt State	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel Trusted Execution Technology	No
Intel® InTru™ 3D Technology	Yes
Execute Disable Bit	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Secure Key	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Enhanced Intel SpeedStep Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel TSX-NI	No
Intel VT-x with Extended Page Tables (EPT)	Yes
CPU configuration (max)	1
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Intel Identity Protection Technology version	1.00
Intel TSX-NI version	0.00
Scalability	1S
Intel Secure Key Technology version	1.00
Processor ARK ID	129944
Intel® Turbo Boost Technology	No
Intel Stable Image Platform Program (SIPP) version	0.00
Thermal solution specification	PCG 2015A

AC adapter power	100 W
AC adapter frequency	50-60 Hz
AC adapter input voltage	100 - 240 V

Pen included	No

Width (with stand)	384.2 mm
Depth (with stand)	43.8 mm
Height (with stand)	246.4 mm
Weight (with stand)	2200 g
Package width	462 mm
Package depth	216 mm
Package height	346 mm
Package weight	4300 g

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Harmonized System (HS) code	84713000

3D	No
Detachable display	No
