Produktbeskrivning

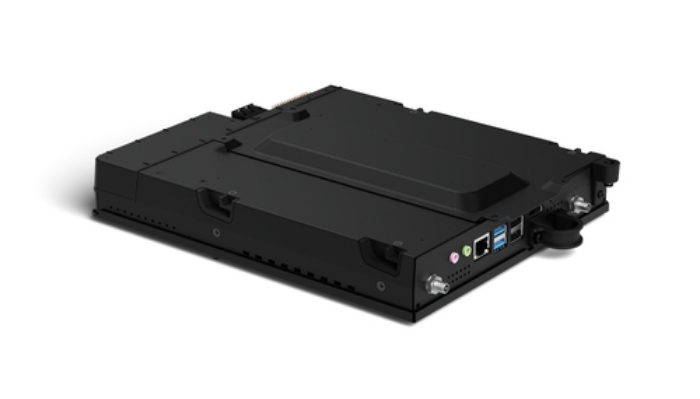

We are pleased to announce the new family of Elo Computer Modules (ECM) featuring the Intel® Core™ 7th Generation CPUs and enhanced graphics engine. Offered with Intel i5 processors for Microsoft Windows® 10 or no operating system, the ECMs can help enable customer engagement and immersive brand experiences by adding a new exciting dimension to traditional broadcast digital signage - the power of touch. The commercial grade computer modules transform Elo's 6553L into a powerful platform with compatibility to most content management servers.
Smaller Form Factor
With dimensions of 11.07x8.2x1.7 the new ECMG4 form factor is 47% smaller than the previous model, delivering a lower cost, lower energy consumption computer module that's easier to install and maintain.
Easy Installation
The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.
Collaboration Ready
Pair the flexibility of Elo’s 6553L Interactive Board with a seamless, bring-your-own-device, content sharing software to offer employees and corporations countless business benefits. Elo’s ECMG4 comes conferencing ready with the DisplayNote Montage Software included. From increased efficiency to controlled costs – start connecting teams and information in real time to empower better, faster, more reliable decision making and improving the way collaboration works.
Built-to-Last
The Elo Computer Modules deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 4 or 5-years. We design and build the complete solution, with touch integrated from the start.
Viktiga egenskaper
Elo Touch Solutions ECMG4. Processor frequency: 2.7 GHz, Processor family: Intel® Core™ i5, Processor model: i5-7500T. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Maximum internal memory: 64 GB. Total storage capacity: 256 GB, Storage media: SSD, SSD capacity: 256 GB. On-board graphics card model: Intel® HD Graphics 630. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Teknisk specifikation
Processor
| Processor frequency | 2.7 GHz |
|---|
| Processor family | Intel® Core™ i5 |
|---|
| Processor generation | 7th gen Intel® Core™ i5 |
|---|
| Processor model | i5-7500T |
|---|
| Processor cores | 4 |
|---|
| Processor boost frequency | 3.3 GHz |
|---|
| Processor cache | 6 MB |
|---|
| Processor cache type | Smart Cache |
|---|
| System bus rate | 8 GT/s |
|---|
| Processor threads | 4 |
|---|
| Bus type | DMI3 |
|---|
| Configurable TDP-down frequency | 1.7 GHz |
|---|
| Conflict-Free processor | Yes |
|---|
Memory
| Internal memory | 8 GB |
|---|
| Internal memory type | DDR4-SDRAM |
|---|
| Maximum internal memory | 64 GB |
|---|
| Memory layout (slots x size) | 1 x 8 GB |
|---|
| Memory slots | 2x SO-DIMM |
|---|
| Memory clock speed | 2400 MHz |
|---|
Storage
| Total storage capacity | 256 GB |
|---|
| Storage media | SSD |
|---|
| Number of storage drives installed | 1 |
|---|
| Card reader integrated | No |
|---|
| SSD capacity | 256 GB |
|---|
Graphics
| On-board graphics card | Yes |
|---|
| On-board graphics card model | Intel® HD Graphics 630 |
|---|
| Discrete graphics card | No |
|---|
Network
| Wi-Fi | Yes |
|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
|---|
| Ethernet LAN | Yes |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.0 |
|---|
Ports & interfaces
| USB 2.0 ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| HDMI ports quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Line-out | Yes |
|---|
| Microphone in | Yes |
|---|
Performance
| Motherboard chipset | Intel® H110 |
|---|
| Product colour | Black |
|---|
| BIOS type | AMI |
|---|
| Number of antenna connectors | 2 |
|---|
Software
| Operating system installed | Windows 10 |
|---|
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|
| Execute Disable Bit | Yes |
|---|
| Idle States | Yes |
|---|
| Intel Trusted Execution Technology | Yes |
|---|
| Intel Enhanced Halt State | Yes |
|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
|---|
| Embedded options available | Yes |
|---|
| Intel TSX-NI | Yes |
|---|
| Intel 64 | Yes |
|---|
| Intel Stable Image Platform Program (SIPP) | Yes |
|---|
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
|---|
| Intel Clear Video Technology | Yes |
|---|
| Intel Software Guard Extensions (Intel SGX) | Yes |
|---|
| Intel Identity Protection Technology version | 1.00 |
|---|
| Intel Secure Key Technology version | 1.00 |
|---|
| Intel Virtualization Technology (VT-x) | Yes |
|---|
| Intel TSX-NI version | 1.00 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -30 - 60 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
Certificates
| Certification | UL/cUL, CB, FCC, CE, AS, NZS, VCCI |
|---|
Weight & dimensions
| Width | 281.1 mm |
|---|
| Depth | 43 mm |
|---|
| Height | 208.2 mm |
|---|
| Weight | 2100 g |
|---|
| Package width | 730 mm |
|---|
| Package depth | 350 mm |
|---|
| Package height | 520 mm |
|---|
| Package weight | 3300 g |
|---|
Logistics data
| Harmonized System (HS) code | 84713000 |
|---|
