Produktbeskrivning

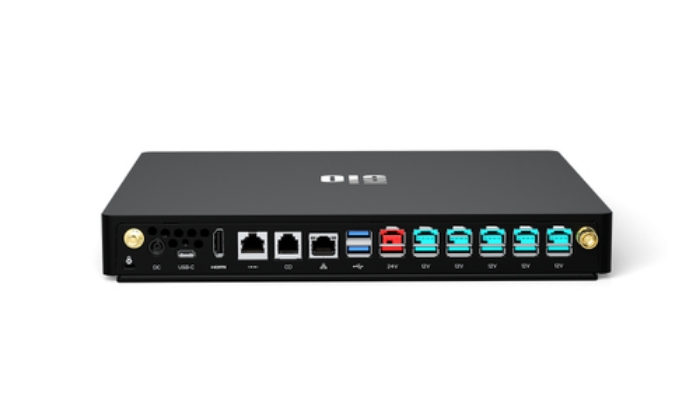

The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system with Intel’s Q370 Chipset and the speed of the Intel’s 8th gen processors, the EloPOS Pack provides the power you need to run your business. With versatile connectivity options, plug in anything from Elo’s latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. The system provides flexibility to make upgrades as your business requirements change.

Designed for Versatility
From point-of-sale terminals and self-service kiosks to automation controls, the EloPOS Pack offers the connectivity and durability to thrive under the demands of continuous use.

Small Footprint
Purpose-built to accommodate compact spaces, the EloPOS Pack boasts a smaller footprint in both size and weight than other commercial-grade PCs.

Securely Mount
Easily secure the EloPOS Pack to any counter in a snap. Attach the mounting bracket to your desired location and simply clip it into place. And for added security, you can use the Kensington locks.

Connect It All
With 16 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.

Leverage the Best of Intel
Create a network with the security, performance and manageability you need for your business.

Windows or Linux. You Choose.
Whether you want Windows 10 or a no-OS model to run Linux, the enterprise-ready EloPOS Pack provides the freedom to adapt to your infrastructure. To get you up and running quicker, the no-OS models have been pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Get Peace of Mind With EloCare
EloCare provides service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.

Unite Your Digital Touchpoints
From your POS Terminals and self-service kiosks to your back-of-house systems, Elo has a solution for every touchpoint.



Viktiga egenskaper

Elo Touch Solutions POS Pack. Processor family: Intel® Celeron®, Processor model: G4900T, Processor frequency: 2.9 GHz. Internal memory: 4 GB, Internal memory type: DDR4-SDRAM, Maximum internal memory: 64 GB. Total storage capacity: 128 GB, Storage media: SSD, Storage media type: SSD. Graphics card manufacturer: Intel, Graphics card: UHD Graphics 610. Certification: UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC



Teknisk specifikation

Processor family	Intel® Celeron®
Processor model	G4900T
Processor cores	2
Processor threads	2
Processor frequency	2.9 GHz
Processor cache	2 MB
System bus rate	8 GT/s
Motherboard chipset	Intel Q370

Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Number of memory slots	4
Memory slots type	SO-DIMM
Memory clock speed	2400 MHz

Total storage capacity	128 GB
Storage media	SSD
Storage media type	SSD
SSD capacity	128 GB
SSD interface	Serial ATA III
SSD form factor	M.2

Graphics card manufacturer	Intel
Graphics card	UHD Graphics 610

Certification	UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC

Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Powered USB	Yes
HDMI ports quantity	1
Line-out	Yes
DC-in jack	Yes

Chassis type	Mini
Product colour	Black

Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit

AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (typical)	32.415 W
Power supply	180 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	0 - 95 %

Mean time between failures (MTBF)	50000 h

Width	276 mm
Depth	237.5 mm
Height	37 mm
Weight	2600 g

Package width	414 mm
Package depth	346 mm
Package height	169 mm
Package weight	5000 g

Cables included	AC,HDMI,USB,USB Type-C
Quick start guide	Yes
Power adapter included	Yes

Cable lock slot	Yes
Cable lock slot type	Kensington

Sustainability certificates	ENERGY STAR
