Produktbeskrivning

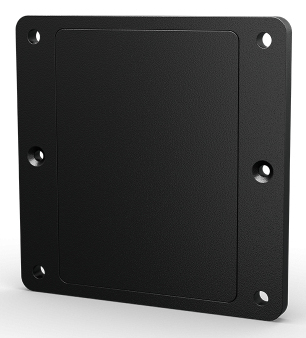

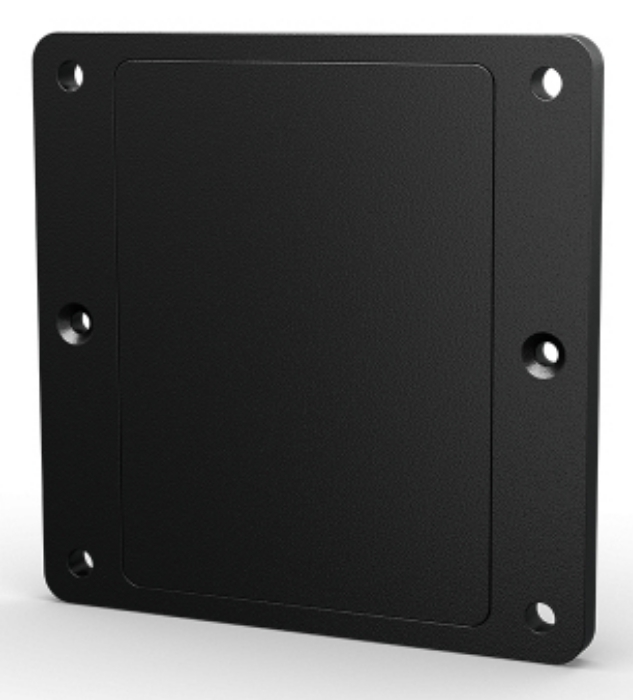

The Power-over-Ethernet (POE) module offers a convenient and cost effective way to deliver power to the Android I-Series. The module allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source. So instead of requiring a power drop which can be expensive, you can run a low voltage network to simplify installation of solutions for shelf signage and AV applications like conference room schedulers or AV control displays.



Viktiga egenskaper

Elo Touch Solutions E669163. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3bt, IEEE 802.3af, Cable types supported: Cat5. Product colour: Black, Power protection features: Over current, Overheating. Efficiency: 85%. Compliance certificates: Federal Communications Commission (FCC), Industry Canada (IC), CE, VCCI, RCM. Width: 115 mm, Depth: 115 mm, Height: 18.8 mm



Teknisk specifikation

Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3bt,IEEE 802.3af
Cable types supported	Cat5

Product colour	Black
Power protection features	Over current,Overheating

Efficiency	85 %

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	10 - 95 %

Width	115 mm
Depth	115 mm
Height	18.8 mm
Weight	119 g

Package width	180 mm
Package depth	145 mm
Package height	42 mm
Package weight	232 g

Compliance certificates	Federal Communications Commission (FCC),Industry Canada (IC),CE,VCCI,RCM
