Produktbeskrivning

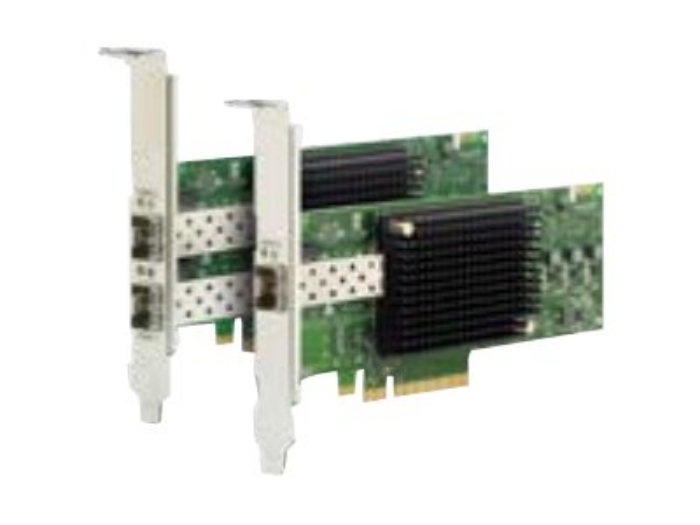

The Emulex Gen 6 (32Gb) Fiber Channel (FC) Host Bus Adapters (HBAs) by Broadcom are designed to address the demanding performance, reliability and management requirements of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.

Fiber Channel is the gold standard for network storage connectivity in enterprise and cloud deployments. The latest Emulex Gen 6 FC HBAs offer higher performance, lower latency, enhanced diagnostics and manageability for Cisco UCS C-Series rack servers. The LPe32000-series HBAs are available with single or dual 32GFC optics.

Unique to Fibere Channel technology is its deep ecosystem support making it ideal for large scale, easyto-manage storage deployments. Users can count on a complete suite of management software, inbox drivers for mainstream server operating systems, software-defined storage APIs and tools, and the strength to support high servicelevel agreement (SLA) applications.



Egenskaper

● Completes data warehousing transactions in 1/4 of the time
● Meet the massive bandwidth requirements of flash storage arrays with up to 32GFC throughput
● Maximize the performance of flash-based systems by prioritizing mission-critical traffic in congested networks with the exclusive ExpressLane feature
● Near limitless scalability to support maximum VM density with 2X more on-chip resources & bandwidth
● Improved VDI experience with low latency HBAs providing noticeable improvements during boot storms



Teknisk specifikation

Typ av enhet	Värdbussadapter
Formfaktor	Instickskort
Gränssnittstyp (buss)	PCI Express 3.0 x8
Version av PCI-specifikation	PCIe 3.0

Portar	32Gb Fibre Channel x 2
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	32Gb Fibre Channel Gen 6 (Short Wave)
Fibre Channel	FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-HBA, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SBC-2, SPC-3, FC-PI-6, SBC-3, SPC-4, SSC-4, SSC-3
Dataöverföringshastighet	28.05 Gbps

Processor	1 x XE501

Gränssnitt	2 x 32Gb Fibre Channel - LC multiläge

Inkluderade tillbehör	Hållare för låg version
Standarder som följs	CSA, UL, FCC, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, China RoHS, RCM, EU RoHS

Operativsystem erfordras	SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux, VMware vShpere

Bredd	16.764 cm
Höjd	6.891 cm

Service och support	Begränsad garanti - förtida byte av hårdvara - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	55 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)

Designat för

Cisco UCS C220 M5SX SFF, C240 M5 LFF Rack Server, C240 M5 SFF Rack Server, C460 M4 Rack Server for SAP HANA Scale-Up (Tracer), Smart Play 8 C240 M4 SFF Entry Plus (Tracer), Smart Play C220 M4 SFF Performance, SmartPlay Select C220 M4 Storage Bundle 5, SmartPlay Select C220 M4S, SmartPlay Select C220 M4S Advanced 1 (Tracer), SmartPlay Select C220 M4S Advanced 3, SmartPlay Select C220 M4S Basic 2, SmartPlay Select C220 M4S High Core 1, SmartPlay Select C220 M4S High Core 2, SmartPlay Select C220 M4S Standard 1 (Tracer), SmartPlay Select C220 M4S Standard 2, SmartPlay Select C220 M4SX Performance 1, SmartPlay Select C220 M4SX Performance 2, SmartPlay Select C220 M4SX Performance 3, SmartPlay Select C220 M5 Standard 2, SmartPlay Select C220 M5S Standard 1, SmartPlay Select C220 M5SX Advanced 1, SmartPlay Select C220 M5SX Standard 2, SmartPlay Select C240 M4L, SmartPlay Select C240 M4L High Frequency 1 (Not Sold Standalone), SmartPlay Select C240 M4L High Frequency 1 (Tracer), SmartPlay Select C240 M4L High Frequency 2 (Not Sold Standalone), SmartPlay Select C240 M4L High Frequency 2 (Tracer), SmartPlay Select C240 M4S Advanced 1, SmartPlay Select C240 M4S Advanced 2, SmartPlay Select C240 M4S Basic 1, SmartPlay Select C240 M4S High Core 1, SmartPlay Select C240 M4S High Core 2, SmartPlay Select C240 M4S Standard 1, SmartPlay Select C240 M4S Standard 2, SmartPlay Select C240 M4S Standard 3, SmartPlay Select C240 M4SX, SmartPlay Select C240 M4SX Advanced 1 (Tracer), SmartPlay Select C240 M4SX Basic 1, SmartPlay Select C240 M4SX High Core 1, SmartPlay Select C240 M4SX High Frequency 1 (Tracer), SmartPlay Select C240 M4SX High Frequency 2 (Tracer), SmartPlay Select C240 M4SX Medium, SmartPlay Select C240 M4SX Performance 2, SmartPlay Select C240 M4SX Standard 1, SmartPlay Select C240 M4SX Standard 1 (Tracer), SmartPlay Select C240 M5 Advanced 2, SmartPlay Select C240 M5SX, SmartPlay Select C240 M5sx Advanced 2
