Produktbeskrivning

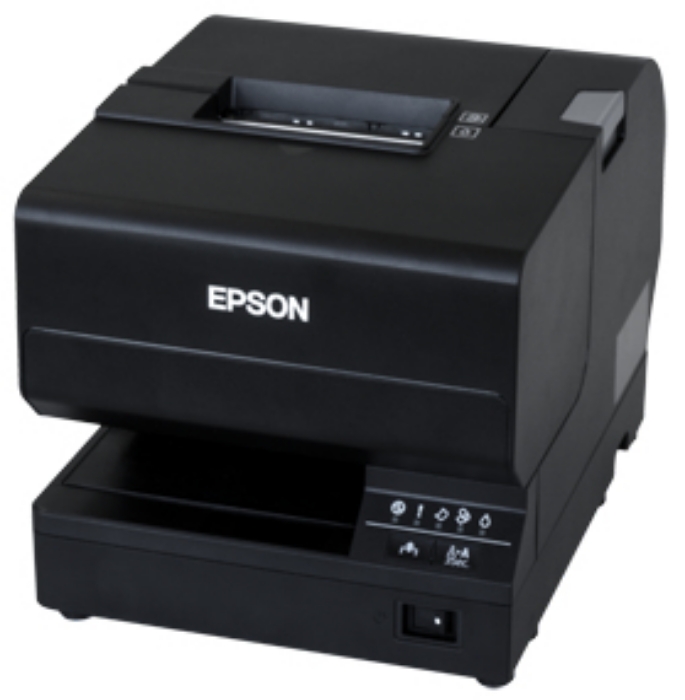

Versatile POS printer
The TM-J7200 multifunctional inkjet printer has been designed for use in retail environments where the facility to print receipts as well as slips, forms and coupons is required. This model uses inkjet technology for faster, higher quality printing, while maintaining a low TCO and backwards compatibility.

Faster, better inkjet technology
Inkjet technology means that not only are printouts more detailed (600dpi compared to 180dpi for existing models), they’re around twice as fast too, with a print speed of 100mm/s (23.2lps) compared to 43mm/s (13.5lps) for previous models.
Low TCO
Epson has managed to incorporate inkjet technology into this new model while retaining a similar low total cost of ownership to previous dot matrix units.

Simple maintenance
The new ink cartridges have an easy-install design ideal for busy retail counters, as well as drop-in paper roll for quick loading, and the ink formulation used offers better water and light resistance than dot matrix, so receipts and documents will last longer.

Backwards compatible
To make upgrading from existing models incredibly easy, the TM-J7200 is fully backwards-compatible with the TM-J7000 and has exactly the same footprint, so it can simply be swapped in. However to integrate smoothly with the latest ePOS systems, the new model offers both USB and Ethernet connection options.



Viktiga egenskaper

Epson TM-J7200 (301) W/O MICR,BLACK,INC PSU,EU. Print technology: Inkjet, Type: POS printer, Print speed: 98 mm/sec. Supported paper width: 58 - 83 mm, Media thickness: 0.06 - 0.09 mm, Maximum paper size (slip): 230 x 297 mm. Connectivity technology: Wired, USB connector: USB Type-B. Sound pressure level (printing): 55 dB, Mean time between failures (MTBF): 180000 h, Autocutter durability: 1.5 million cuts. Product colour: Black



Teknisk specifikation

Print technology	Inkjet
Type	POS printer
Colour	No
Print speed	98 mm/sec
Print speed (graphic)	98 mm/sec
Print speed (receipt)	98 mm/sec
Print speed (slip)	85 mm/sec
Printing characters	Text,Graphic,Barcode
Character sets	ANK
Alphanumeric memory	95

Media thickness	0.06 - 0.09 mm
Supported paper width	58 - 83 mm
Maximum paper size (slip)	230 x 297 mm

Connectivity technology	Wired
USB port	Yes
USB 2.0 ports quantity	1
USB connector	USB Type-B
Ethernet LAN (RJ-45) ports	1

Ethernet LAN	Yes
Wi-Fi	No

Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	180000 h
Half-cutter	No
Autocutter durability	1.5 million cuts
Country of origin	China
Printer receipt unit life	3700000000 lines
Printer slip unit life	5000000 lines
Safety	TÜV, TÜV (EN60950-1)
Certification	CE, EN55024, EN55032 Class A, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11

Product colour	Black

Power source type	DC
AC input voltage	24 V
Power consumption (standby)	70000 mA

Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 40 °C
Storage relative humidity (H-H)	20 - 85 %
Operating relative humidity (H-H)	20 - 80 %

Width	195 mm
Depth	260 mm
Height	188 mm
Weight	5100 g

Cables included	AC
Quantity per pack	1 pc(s)
Package width	297 mm
Package depth	390 mm
Package height	305 mm
Package weight	7200 g

Pallet weight (UK)	0 g
Harmonized System (HS) code	84433210
Products per pallet	48 pc(s)
Products per pallet layer	8 pc(s)
Pallet gross width	800 mm
Pallet gross length	1200 mm
Pallet gross height	1710 mm
Pallet gross weight	0 g
Products per pallet (UK)	60 pc(s)
Products per pallet layer (UK)	10 pc(s)
Pallet width (UK)	1000 mm
Pallet length (UK)	1200 mm
Pallet height (UK)	1710 mm

Voltage	24 V
Font styles	ANK

Paper dimensions	58 mm - 83 mm
Mean cycles between failures (MCBF)	5000000
