Produktbeskrivning

Gateway to tablet POS
With a focus on mobile connectivity and a small footprint, this compact receipt printer is ideal for tablet POS environments, such as hospitality and specialist retail outlets. Its design makes it ideal for customers looking to move to a tablet POS system, including those currently using PC POS. And, as one of the smallest stationary POS printers in the world¹, it’s easy to position anywhere.

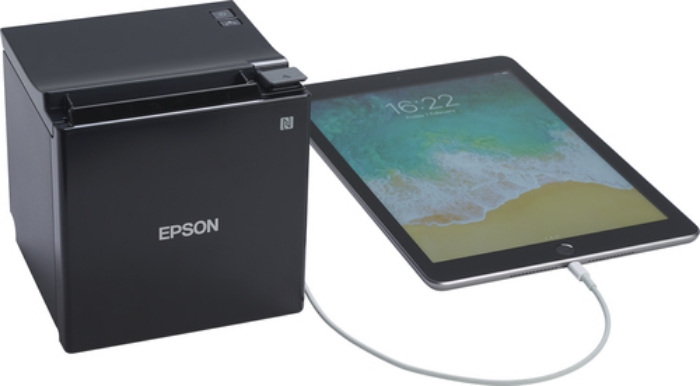

Built for easy connectivity with tablets
By touching an NFC-equipped mobile device or tablet to the TM-m30 printer, it is easy to pair both together to print. ePOS print{s2, the printer's built-in intelligence that communicates with web applications, allows direct printing from ANY mobile device without the need to install or update drivers. It is available for iOS, Android and Windows{s3.

Position anywhere thanks to its sleek, compact and stylish design
With its sleek, stylish and compact design, the new TM-m30 is ideal for tablet POS applications and fits perfectly into small and medium-sized retail and hospitality environments, helping them to operate more efficiently and productively. With Ethernet, Bluetooth or Wi-Fi interfaces, it can be integrated into virtually any operating environment. By easily swapping just two covers the printer can be placed either horizontally or vertically - therefore top load or front load is possible.

High quality and adaptable
The new DM-D30 optional display is developed to match the modern design of the TM-m30 printer and an optional tablet stand is also available. Available in both black and white, this printer can print receipts in multiple greyscales, with advanced graphic and barcode printing capabilities that allow for highly customised layouts of receipts, including logos and promotional messages, that can be added with ease.



Viktiga egenskaper

Epson TM-m30II-NT (152): USB + Ethernet + NES + Lightning, Black, PS, EU. Print technology: Direct thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 8.3 cm, Supported paper width: 58 mm - 80 mm (Breite). Connectivity technology: Wired, USB connector: USB Type-A / USB Type-B. Compatible memory cards: MicroSD (TransFlash), Sound pressure level (printing): 55 dB, Mean time between failures (MTBF): 360000 h. Product colour: White



Teknisk specifikation

Print technology	Direct thermal
Type	POS printer
Maximum resolution	203 x 203 DPI
Print speed	250 mm/sec
Print speed (receipt)	250 mm/sec
Printing characters	Text,Graphic,Barcode
Character sets	ANK

Maximum roll diameter	83 mm
Supported paper width	58 mm - 80 mm (Breite) mm

Connectivity technology	Wired
USB port	Yes
USB 2.0 ports quantity	2
USB connector	USB Type-A / USB Type-B
Serial interface	No
Near Field Communication (NFC)	Yes

Ethernet LAN	Yes
Wi-Fi	Yes

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
Cutter	Yes
Half-cutter	Yes
Autocutter durability	2.2 million cuts
Tablet charge & sync	Yes
Wall mountable	Yes
Country of origin	Philippines
Mounting position	Horizontal/Vertical
Print head life	150 km
Built-in sensors details	Paper End Sensor, Papier-Sensor

Product colour	White

Power source type	AC
Power plug type	Type C

Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-20 - 60 °C

Width	127 mm
Depth	127 mm
Height	127 mm
Weight	1300 g

Cables included	AC
Quantity per pack	1 pc(s)
Package width	195 mm
Package depth	240 mm
Package height	235 mm
Package weight	2382 g

AC adapter included	Yes

Column capacity	48/57

Pallet weight (UK)	0 g
Harmonized System (HS) code	84433210
Products per master (outer) case	4 pc(s)
Master (outer) case width	400 mm
Master (outer) case length	490 mm
Master (outer) case height	255 mm
Master (outer) case gross weight	0 g
Products per pallet	128 pc(s)
Pallet gross weight	0 g
Products per pallet (UK)	192 pc(s)

Font styles	ANK
Lifetime	17000000 lines

Buffer size	12 KB
Mean cycles between failures (MCBF)	65000000
Print head life	150.000.000 Impulse
