Produktbeskrivning

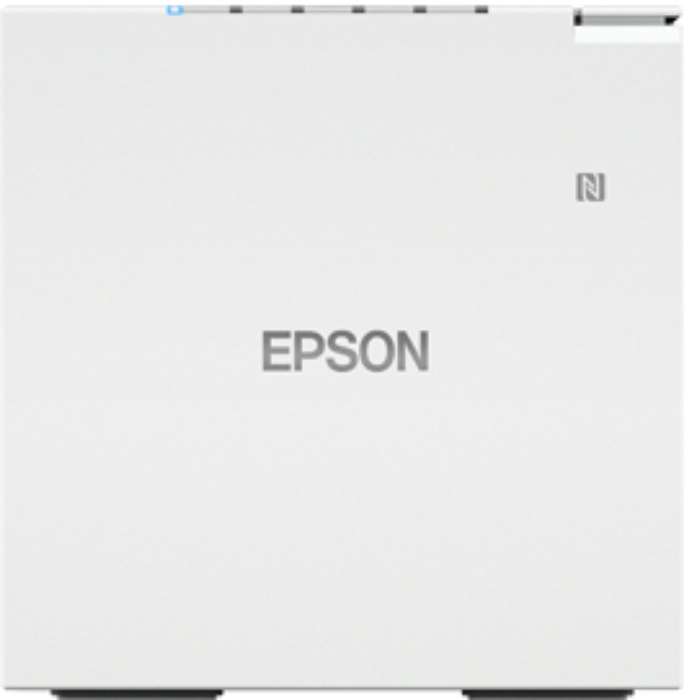

Ultra-compact receipt printer (standard)
Based on a stylish and ultra-compact design, and with a host of advanced features, the TM-m30III is a perfect combination of mobility, connectivity, reliability and ease-of-use. Providing cost-effective and reliable receipt printing in any environment where space is an issue, it’s designed to meet the needs of a wide range of growing businesses.

Space-efficient , robust and reliable
With an all-new, highly compact, super-sleek design, which reflects today’s demand for a clean and modern aesthetic, the TM-m30III is also robust and reliable, with a range of connectivity options.

Easy connectivity and increased power delivery
Including a USB Type-C PD (Power Delivery) tablet port, now able to supply up to 18W of power to the connected device, the TM-m30III works with most smart devices, and also offers 20Mbps network tethering, which allows the wired network connection to the printer to be shared. A Wi-Fi and Bluetooth option is also available (See TM-m30III Wireless version).

Built for tough environments
Offering protection against the harmful ingress of liquids to IPX2 standards, the TM-m30III has also been designed with easy cleaning in mind, and is externally treated with an ISO22196-certified antibacterial material, making it ideal for challenging environments such as kitchens.

Easy, reliable code scanning
The TM-m30III includes superior de-curl functionality, able to produce flattened receipts with no reduction in print speed. This is particularly useful in applications where code-scanning is important, such as event ticketing, or for producing documents that require a signature.

Boosts speed and efficiency
Offering reliable paper roll near-end detection, which operates with the printer oriented for either front or top paper exit positions, the TM-m30III is ideal for semi-attended applications, such as kiosks or self-checkout, where prompt paper replacement avoids unnecessary downtime.

Easy set-up, excellent support
The printer is supplied with a “quick start” sheet that offers a simple and effective setup guide, while scannable QR-codes link to videos that cover all processes, from unpacking to power on, as well as basic configuration tasks. Expert Epson support is available for iOS, Android and Windows.



Viktiga egenskaper

Epson TM-m30III (111A0): Standard Model, White, UK. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 80 µm, Maximum roll diameter: 8.3 cm, Supported paper width: 58, 80 mm. Connectivity technology: Wired. Ethernet LAN data rates: 100,10 Mbit/s. Built-in barcodes: Code 39, Code 93, Data Matrix, GS1-128, ITF, ITF-14, ITF-25, Macro PDF417, MaxiCode, PDF417,..., Sound pressure level (printing): 53 dB, Mean time between failures (MTBF): 360000 h



Teknisk specifikation

Print technology	Thermal
Type	POS printer
Maximum resolution	203 x 203 DPI
Print speed	300 mm/sec

Supported paper width	58, 80 mm
Maximum roll diameter	83 mm
Printing media thickness	80 µm

Connectivity technology	Wired
USB port	Yes
Serial interface	Yes
Near Field Communication (NFC)	Yes

Ethernet LAN	Yes
Ethernet LAN data rates	100,10 Mbit/s

Built-in barcodes	Code 39,Code 93,Data Matrix,GS1-128,ITF,ITF-14,ITF-25,Macro PDF417,MaxiCode,PDF417,MicroPDF417,UPC-A,UPC-E
Sound pressure level (printing)	53 dB
Mean time between failures (MTBF)	360000 h
Cutter	Yes
Autocutter durability	2200000 million cuts
Mounting position	Horizontal/Vertical
Wall mountable	Yes
Receive buffer	4 KB
Print head life	150 km
Printer receipt unit life	65000000 lines
Certification	CE marking

Product colour	White

Power source type	AC
Power consumption (printing)	1 W
AC input voltage	100 - 230 V
AC input frequency	50 - 60 Hz

Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-20 - 60 °C

Windows operating systems supported	Yes
Mac compatibility	Yes
Mobile operating systems supported	Android,iOS

Width	127 mm
Depth	127 mm
Height	130 mm
Weight	1300 g
