Produktbeskrivning

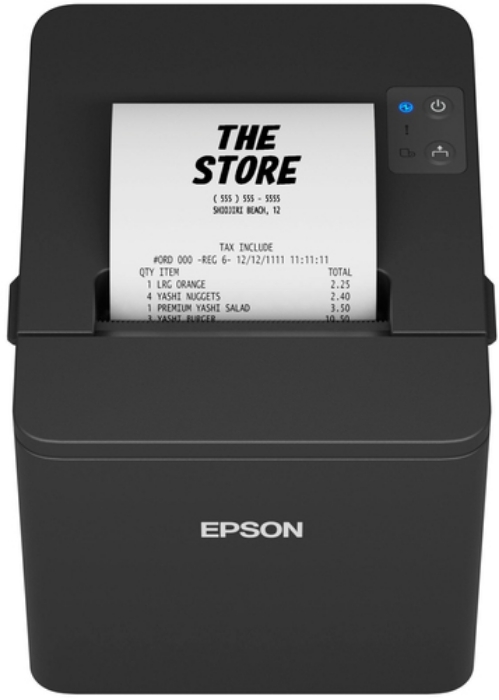

POS receipt printer
The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.

Affordable
This easy-to-use model is our entry-level POS receipt printer and has an 80mm printing width. Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and barcode height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm.

Reliable
With the mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20IV in high-volume printing environments.

Flexible
The TM-T20IV comes with a built-in USB + Serial interface, making the model a long-term investment as it is possible to switch connectivity at any time.

Fast
Its print speed of 250mm/sec can save you time and its competitive price and running costs can save you money; ideal for when you need to beat queues quickly.



Viktiga egenskaper

Epson TM-T20IV (101):USB+SERIAL, PS,BLK,. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 53 - 75 µm, Maximum roll diameter: 8.3 cm, Supported paper width: 80 mm. Connectivity technology: Wired, USB connector: USB Type-B, Serial interface type: RS-232. Built-in barcodes: CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E, Mean time between failures (MTBF): 360000 h, Autocutter durability: 2 million cuts. Product colour: Black



Teknisk specifikation

Print technology	Thermal
Type	POS printer
Colour	No
Maximum resolution	203 x 203 DPI
Print speed	250 mm/sec
Character size	1.25 x 3 mm
Character density	22.6 cpi
Printing characters	Graphic

Supported paper width	80 mm
Maximum roll diameter	83 mm
Printing media thickness	53 - 75 µm

Connectivity technology	Wired
USB port	Yes
USB 2.0 ports quantity	1
USB connector	USB Type-B
Serial interface	Yes
Serial interface type	RS-232
Optional connectivity	Ethernet,Wireless LAN

Ethernet LAN	No
Wi-Fi	No

Built-in barcodes	CODABAR (NW-7),Code 39,Code 93,EAN13,EAN8,GS1 DataBar,GS1-128,ITF,UPC-A,UPC-E
Mean time between failures (MTBF)	360000 h
Cutter	Yes
Autocutter durability	2 million cuts
Wall mountable	Yes
Print head life	150 km
Receive buffer	4 KB
Built-in sensors details	Paper End Sensor, Paper Near End Sensor

Product colour	Black

Power source type	DC
Power consumption (printing)	27.2 W
AC input voltage	100 - 230 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.96 W
DC output voltage	24 V

Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-10 - 50 °C

Windows operating systems supported	Yes
Mobile operating systems supported	Android,iOS

Width	140 mm
Depth	199 mm
Height	146 mm
Weight	1700 g

Cables included	AC

AC adapter included	Yes

Safety warning	UL62368-1, CAN/CSA C22.2 No.62368-1
Compliance certificates	Federal Communications Commission (FCC),ICES

Mean cycles between failures (MCBF)	60000000
