Produktbeskrivning

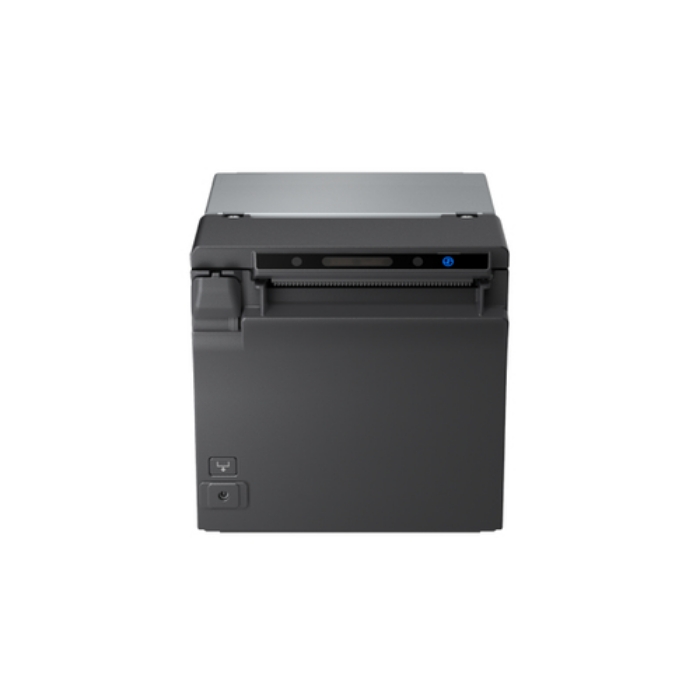

Kiosk receipt printer
The EU-m30 is based on the highly-successful TM-m30 printer and has been specifically designed for kiosk applications, following direct feedback from customers

High-quality, reliable hardware
Avoid downtime by choosing proven, reliable hardware from a market leader{s1. Ensure happy customers with high-quality and legible printed receipts. The EU-m30's small footprint means less space is needed for the printer.

Easy to connect and monitor
The EU-m30 comes with USB and serial connectivity as standard. Once connected, the printers' clear indicator LEDs allow operators to assess the printer condition at a glance.

Simple maintenance and installation
The EU-m30 comes with an optional mounting kit to help securely mount the printer to the kiosk. This also makes it easier to swap the printer out for necessary maintenance. A large button cover allows both the power and feed button to be shielded from unwanted presses.

Re-export made easier
The EU-m30 is certified as a component, leaving the vendor free to certify the overall kiosk.



Viktiga egenskaper

Epson EU-m30 (002): USB + Serial, NES, Black, No PSU, No Cable. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Maximum roll diameter: 8.3 cm, Supported paper width: 58 mm - 80 mm (Breite). Connectivity technology: Wired & Wireless. Sound pressure level (printing): 55 dB, Mean time between failures (MTBF): 360000 h, Autocutter durability: 1.5 million cuts. Product colour: Black



Teknisk specifikation

Print technology	Thermal
Type	POS printer
Maximum resolution	203 x 203 DPI
Print speed (receipt)	250 mm/sec
Printing characters	Text,Graphic,Barcode
Character sets	ANK

Supported paper width	58 mm - 80 mm (Breite) mm
Maximum roll diameter	83 mm

Connectivity technology	Wired & Wireless
USB port	Yes
Serial interface	Yes
Near Field Communication (NFC)	Yes

Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
Half-cutter	Yes
Autocutter durability	1.5 million cuts
Mounting position	Horizontal
Print head life	150 km
Country of origin	Philippines
Built-in sensors details	Paper End Sensor, Papier-Sensor

Product colour	Black

Power plug type	Type C

Storage relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %

Pre-installed software	TMNet WebConfig, ePOS-Device, ePOS-Display, ePOS-Print

Width	127 mm
Depth	131 mm
Height	127 mm
Weight	1300 g

Quantity per pack	1 pc(s)
Package width	195 mm
Package depth	230 mm
Package height	235 mm
Package weight	1650 g

Column capacity	48/57

Harmonized System (HS) code	84433210

Font styles	ANK
Lifetime	17000000 lines

Mean cycles between failures (MCBF)	65000000
Buffer size	12 KB
Print head life	150.000.000 Impulse
