Produktbeskrivning
Accommodate the active TV positioning needs of today and tomorrow. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 17.5-inch (45 cm) motion adjustment to either side.
Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
Benefits- Constant Force technology enables light-touch adjustments
- Extends 24" (61 cm) from wall when in use and can be fully retracted to 5.5" (14 cm) when not in use
- The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more
- Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
- Gravity pivot enables tilting capabilities without the need of knobs or levers
- Improves ergonomic viewing for TVs/displays mounted high on the wall
- Constructed from polished aluminum and black trim for maximum strength and bold aesthetics
- Tilt and pan for maximum viewing flexibility
- Level the screen at any position with +/- 5º of post-installation rotation
- Cable management clips on the underside of the arm route and hide wires
- Easy to use: simple installation and effortless operation
- Passes Ergotron’s 7,500-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Viktiga egenskaper

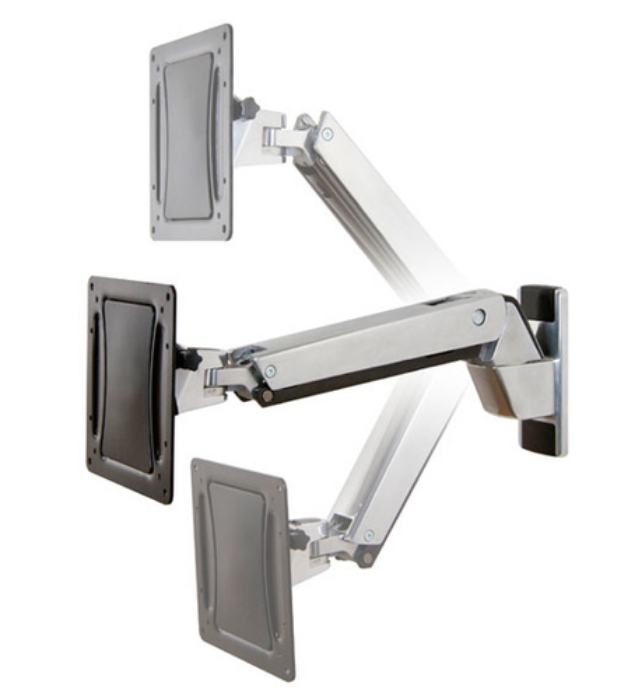

Ergotron Interactive Arm, HD. Maximum weight capacity: 18.2 kg, Minimum screen size: 76.2 cm (30"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 200 x 100 mm. Tilt angle range: 15 - -10°. Product colour: Aluminium
Teknisk specifikation
Mounting
| Maximum weight capacity | 18.2 kg |
|---|
| Minimum screen size | 30 " |
|---|
| Maximum screen size | 55 " |
|---|
| Mounting type | Wall |
|---|
| Minimum VESA mount | 200 x 100 mm |
|---|
| Maximum VESA mount | 200 x 100 mm |
|---|
Ergonomics
| Height adjustment range | 0 - 510 mm |
|---|
| Tilt angle range | 15 - -10 ° |
|---|
| Turn angle | 10 ° |
|---|
| Pan range | 0 - 180 ° |
|---|
Design
| Product colour | Aluminium |
|---|
Weight & dimensions
| Weight | 8391 g |
|---|
Packaging data
| Package width | 660 mm |
|---|
| Package depth | 305 mm |
|---|
| Package height | 191 mm |
|---|
| Package weight | 10500 g |
|---|
Packaging content
| Manual | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 85299097 |
|---|
