Produktbeskrivning

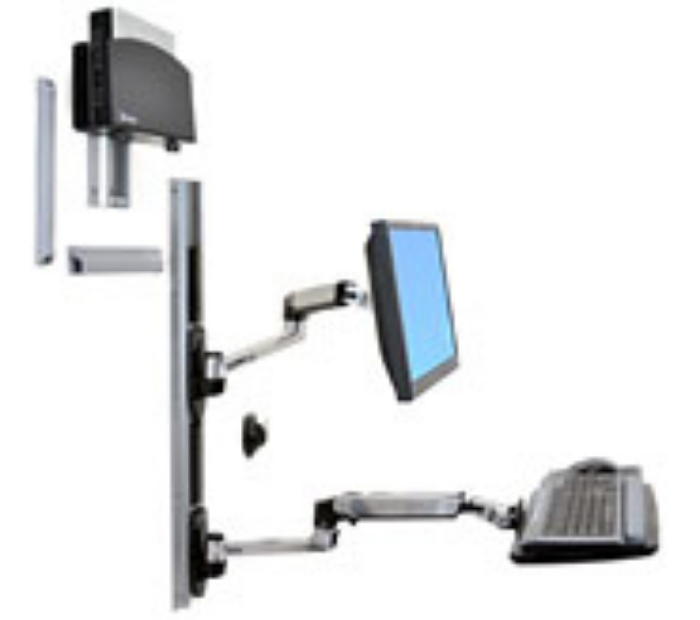

LX Wall Mount System
With Small Black CPU Holder. Durable polished aluminum construction! This is a complete solution that accommodates an LCD, keyboard and CPU while providing vertical and side-to-side motion. It is perfect for space-constrained areas: simply fold the keyboard and LCD tight against the wall when not in use.

- Articulating arms feature full tilt/pan capability and 13" (33 cm) height adjustment, providing premium ergonomic adjustment
- Extends LCD up to 25" (64 cm); keyboard tray extends up to 35" (89 cm); push your display and keyboard out of the way when not in use
- Ideal for space-constrained rooms—keyboard folds to within 3.5" (9 cm) of wall in storage position. LCD arm folds back to a depth of 5.3" (13 cm)
- Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
- Creates a complete and compact workstation
- Effortlessly and independently position the LCD and keyboard to the most comfortable viewing and typing position, all while maintaining eye contact with your patient
- Convenient bi-focal viewing: Screen lowers and positions for optimized viewing by users with bi-focal glasses
- Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment



Viktiga egenskaper

Ergotron LX Series LX Wall Mount System. Maximum weight capacity: 9.1 kg, Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -85 - 85°. Product colour: Black, Silver



Teknisk specifikation

Maximum weight capacity	9.1 kg
Maximum screen size	27 "
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	75 x 75,100 x 75,100 x 100 mm
Number of displays supported	1

Height adjustment	Yes
Tilt angle range	-85 - 85 °
Angle of rotation	360 °
Pan range	-360 - 360 °
Cable management	Yes

Product colour	Black,Silver
Housing material	Aluminium

Weight	13400 g

Package width	940 mm
Package depth	560 mm
Package height	190 mm
Package weight	18000 g

Lift	33 cm

Harmonized System (HS) code	85299097
