Produktbeskrivning

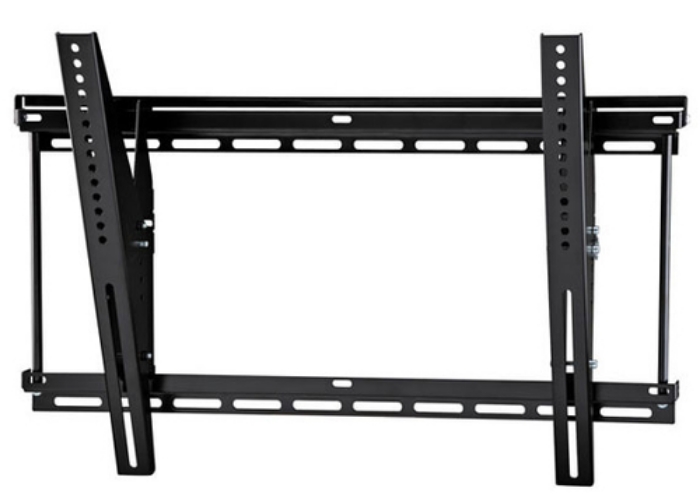

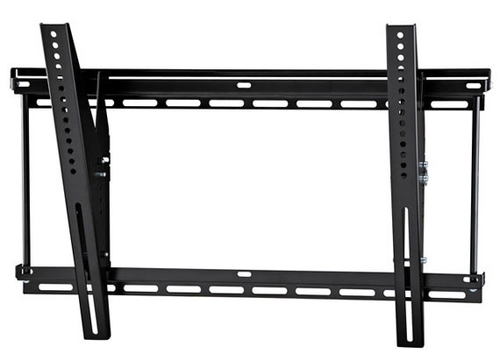

Fits most 37"–63" flat panels up to 175 lbs (79 kg) and is the ideal mount for those looking for an easy-to-use large tilt mount.

Benefits
-Tilt range up to 15º to reduce glare.
-Universal rails for greater panel compatibility.
-Lift n’ Lock™ allows you to easily attach your flat panel to the mount.
-Tension adjustment for variable tilt.
-Sliding lateral on-wall adjustment.
-Open architecture provides easy access to in-wall wiring.
-Locking bar secures panel to mount.
-Simple to install and use.
-Includes complete hardware kit.



Viktiga egenskaper

Ergotron Neo-Flex Tilting Wall Mount, UHD. Maximum weight capacity: 79 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 160 cm (63"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 - 15°, Distance to the wall (min): 6.9 cm, Distance to the wall (max): 17.8 cm. Product colour: Black



Teknisk specifikation

Maximum weight capacity	79 kg
Minimum screen size	37 "
Maximum screen size	63 "
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	100 x 100,200 x 100,200 x 200,280 x 150,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 200,600 x 400 mm

Tilt angle range	0 - 15 °
Distance to the wall (max)	178 mm
Distance to the wall (min)	69 mm

Product colour	Black
Certification	UL

Remotely operated	No

Mounting kit	Yes
Remote control included	No

Width	826 mm
Depth	69 mm
Height	533 mm
Weight	4717 g

Package width	372 mm
Package depth	861 mm
Package height	81 mm
Package weight	9300 g

Harmonized System (HS) code	85299097
