Produktbeskrivning

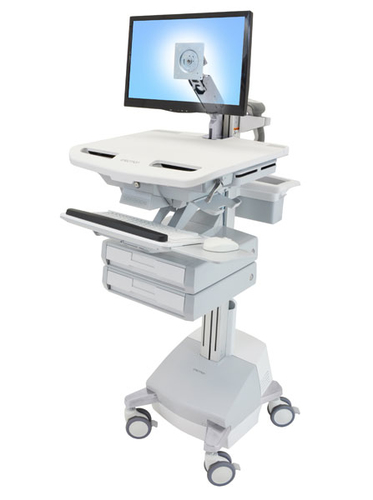

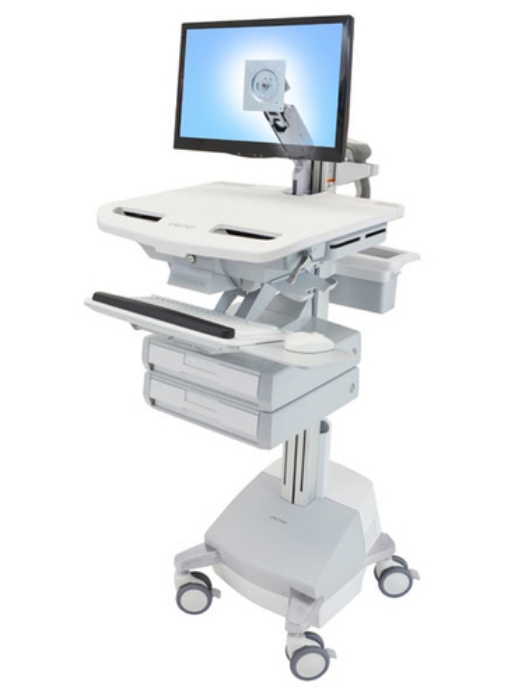

Stay productive and on the go with our certified power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, side-to-side LCD and keyboard motion, bi-focal viewing and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication.

- Dependable fifth-generation power system with easy to replace batteries
- For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A
- Auto-locking drawer system: simple and efficient medication management at the point-of-care reduces opportunities for errors; security system stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)
- Drawer system supports “Pharmacy mode,” allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication
- Extra rows of drawers may be added—up to a maximum of 5 rows
- Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment—helps promote caregiver wellness and productivity
- StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
- Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
- LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tablet PC
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free sit-to-stand height adjustment



Viktiga egenskaper

Ergotron StyleView. Product colour: Aluminium, Grey, White, Recommended usage: Flat panel, Type: Multimedia cart. AC input voltage: 230 V, AC input frequency: 50 Hz. Height adjustment: 68 cm, Weight: 73.5 kg. Package weight: 88.9 kg, Package dimensions (WxDxH): 620 x 870 x 1420 mm. Compliance certificates: RoHS



Teknisk specifikation

Product colour	Aluminium,Grey,White
Material	Aluminium,Plastic,Zinc steel
Recommended usage	Flat panel
Type	Multimedia cart
Maximum weight capacity	17.7 kg
Maximum screen size	24 "
Panel mounting interface	75 x 75,100 x 100 mm
Turn angle	360 °
Tilt angle range	0 - 65 °
Pan range	0 - 180 °
Number of drawers	2 drawer(s)
Keyboard tray	Yes
Locking	Yes
Height adjustment	Yes
Certification	UL/EN/IEC 60601-1, CAN/CSA-C22.2 60601-1:08, FCC 15 A, REACH, WEEE, EU (94/62/EC), TAA

Built-in charger	Yes
AC input voltage	230 V
AC input frequency	50 Hz

Height adjustment	680 mm
Weight	73500 g

Package weight	88900 g
Package dimensions (WxDxH)	620 x 870 x 1420 mm

Compliance certificates	RoHS

Harmonized System (HS) code	94031098
