Produktbeskrivning

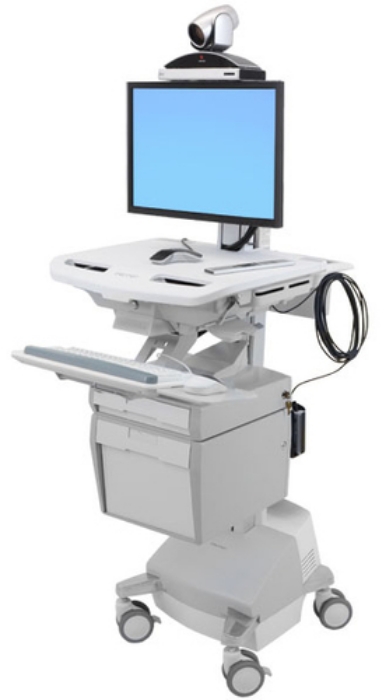

Expand healthcare access through telehealth with this easy and affordable mobile solution, which combines the power to support onboard diagnostics and videoconferencing with the benefits of a StyleView medical cart. Backed by our years of expertise and service, you can confidently build a telemedicine platform that matches your needs and budget.
Open architecture allows for the integration of most standard computer and mobile communications equipment
- Enables remote delivery of specialized care and timely diagnostics
- Configured to accommodate all your telemedicine equipment; large lower bin is perfect for storage of critical appliances
- Lower bin includes three internal USB ports for connecting diagnostic devices and two additional external ports for other devices to be connected on the fly
- Mounts a video or web camera above the monitor, facing forward; camera travels with the monitor through its entire range of motion
- Low configuration cost; ships fully assembled
- Auto-locking drawers: Cart stores variable-length PINs for up to 1,000 users to allow electronically controlled access**
- StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
- Keyboard pans fully side-to-side for closer access while interacting with clients
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
- For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A
- Low operating cost—autonomous rechargeable AC electrical source delivers safe, inexpensive and dependable power
Viktiga egenskaper
Ergotron SV44-53T1-C. Product colour: Aluminium, Grey, White, Recommended usage: Flat panel, Type: Multimedia cart. AC input voltage: 230 V, AC input frequency: 50 Hz. Height adjustment: 43 cm, Weight: 76.4 kg. Package weight: 91.8 kg, Package dimensions (WxDxH): 620 x 870 x 1420 mm. Compliance certificates: RoHS
Teknisk specifikation
Features
| Product colour | Aluminium,Grey,White |
|---|
| Recommended usage | Flat panel |
|---|
| Type | Multimedia cart |
|---|
| Maximum weight capacity | 17.7 kg |
|---|
| Maximum screen size | 24 " |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 75 x 75,100 x 100 mm |
|---|
| Turn angle | 90 ° |
|---|
| Tilt angle range | 0 - 25 ° |
|---|
| Pan range | 0 - 24 ° |
|---|
| Number of wheels | 4 wheel(s) |
|---|
| Keyboard tray | Yes |
|---|
| Locking | Yes |
|---|
| Height adjustment | Yes |
|---|
| Certification | REACH, WEEE, EU (94/62/EC), UL/EN/IEC 60601-1, EMI FCC 15 A, TAA |
|---|
Power
| Built-in charger | Yes |
|---|
| AC input voltage | 230 V |
|---|
| AC input frequency | 50 Hz |
|---|
Weight & dimensions
| Height adjustment | 430 mm |
|---|
| Weight | 76400 g |
|---|
Packaging data
| Package weight | 91800 g |
|---|
| Package dimensions (WxDxH) | 620 x 870 x 1420 mm |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 94031098 |
|---|
