Produktbeskrivning

The FortiGate 70F series provides a fast and secure Next-Generation Firewall and SD-WAN
solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized
businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation
of security.



Viktiga egenskaper

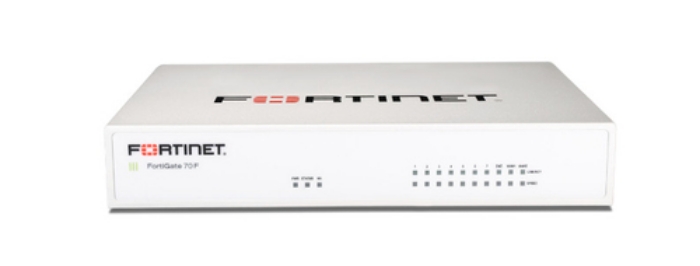

Fortinet FortiGate 70F. Firewall throughput: 10 Gbit/s, VPN throughput: 6.5 Gbit/s, IPS/IDS throughput: 1400 Mbit/s. Security algorithms: IPSec. Connectivity technology: Wired, Ethernet LAN data rates: 1000 Mbit/s, Console port: RJ-45. Form factor: Desktop. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 1 A



Teknisk specifikation

Firewall throughput	10 Gbit/s
VPN throughput	6.5 Gbit/s
IPS/IDS throughput	1400 Mbit/s
Maximum number of virtual firewalls	10
Maximum firewall connections	1500000
Maximum firewall connections per second	35000
Default number of virtual firewalls	10
Firewall latency	2.54 µs

Built-in processor	No

Wi-Fi	No

Security algorithms	IPSec
Firewall security	Yes

LED indicators	Yes

Connectivity technology	Wired
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	7
Console port	RJ-45
Ethernet LAN data rates	1000 Mbit/s
Ethernet DMZ ports quantity	1
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Form factor	Desktop

AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Input current	1 A
DC input voltage	12 V
Power consumption (max)	12.43 W
Power consumption (typical)	10.17 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 2250 m

Width	216 mm
Depth	160 mm
Height	38.5 mm
Weight	1010 g

VPN throughput	6500 Mbit/s
Firewall throughput	10000 Mbit/s
