Produktbeskrivning

The single-port GPI-115 and GPI-130 Power over Ethernet (PoE) injectors offer a compact and cost-effective, fully IEEE 802.3af/802.3at-compliant solution to power FortiAP™ wireless access points and other compliant devices. They deliver single-port, mid-span, with 15.4/30 Watts of Gigabit Ethernet (GE) PoE, giving you maximum deployment flexibility.

The Advantage of Mid-Span Power
The mid-span injector works with legacy network devices and thus eliminates the need to forklift upgrade installed switches. Moreover, they operate in High Availability configuration by connecting to an existing Ethernet switch Uninterruptable Power Supply (UPS) or alternatively to its own dedicated UPS.

Remote Power Wireless LAN Access Points
A PoE injector makes installing FortiAP access points easy and economical. It allows you to place the FortiAP access point at its optimal location by eliminating the need for an AC power outlet in a ceiling or wall. The device injects DC power directly into the same GE cable that carries the Ethernet traffic, avoiding the installation of additional cabling.With the device, you have the freedom to deploy Fortinet’s secure wireless solution anywhere in your facility. It allows you to take advantage of the wireless controller feature in every FortiGate® consolidated security platform. Its plug-and-play capabilities enable rapid deployment of your wireless infrastructure, accelerating the deployment of secure wireless access.



Viktiga egenskaper

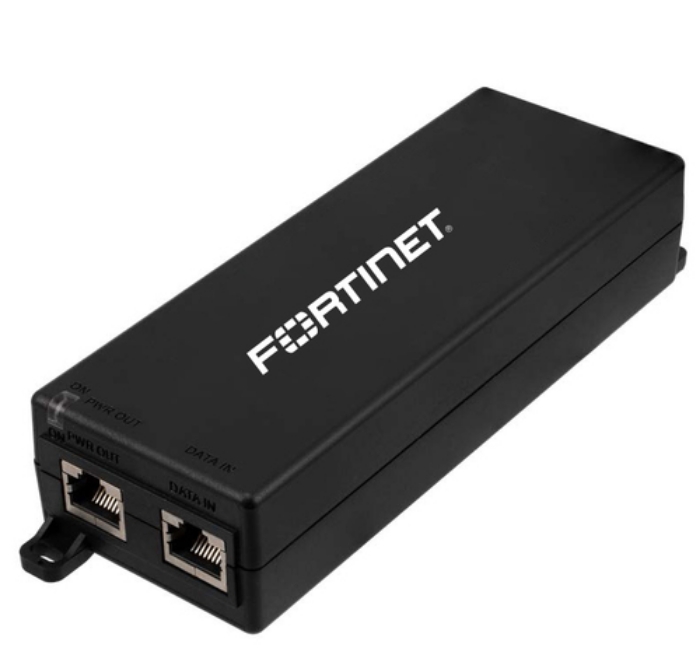

Fortinet GPI-145. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Maximum operating distance: 100 m. Power over Ethernet (PoE) voltage: 55 V, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Compliance certificates: CE, Federal Communications Commission (FCC), GS mark, RoHS, UL, WEEE, cUL, Certification: RoHS, WEEE, CE, UL/cUL, GS Mark, FCC. Width: 53 mm, Depth: 140 mm, Height: 32.5 mm



Teknisk specifikation

Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3at

Maximum operating distance	100 m
LED indicators	Yes
Certification	RoHS, WEEE, CE, UL/cUL, GS Mark, FCC

Ethernet LAN (RJ-45) ports	2

Power over Ethernet (PoE) voltage	55 V
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	0.8 A
Total Power over Ethernet (PoE) budget	60 W

Operating temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	32 - 104 °F
Operating relative humidity (H-H)	0 - 90 %
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95 %

Width	53 mm
Depth	140 mm
Height	32.5 mm
Weight	200 g

Number of products included	1 pc(s)

Compliance certificates	CE,Federal Communications Commission (FCC),GS mark,RoHS,UL,WEEE,cUL
