Produktbeskrivning

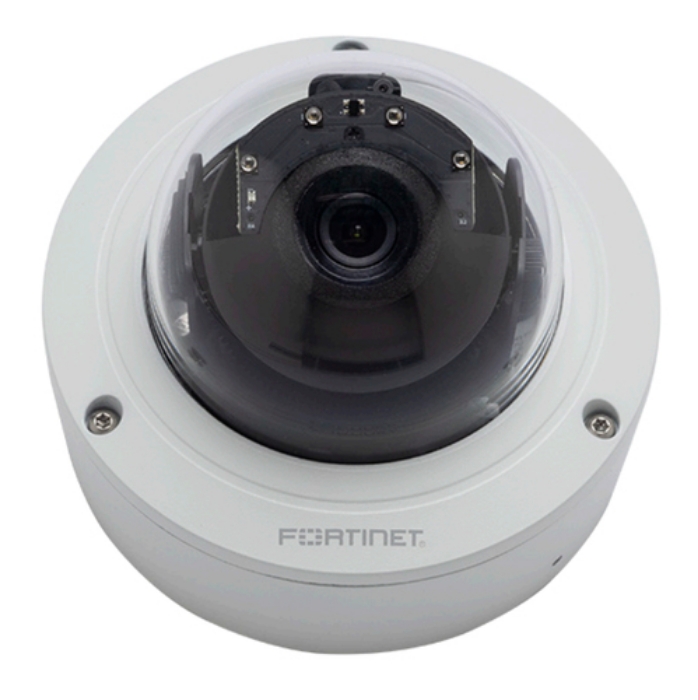

FortiCamera CD51 and CD55FortiCamera CD5x series offers crisp image quality and advanced features in a compact style. These premium dome cameras are designed to simplify deployment and management. Its Bluetooth connectivity allows easy network configuration and adjusting the camera view directly from your smartphone. Built-in Wi-Fi helps with those hard-toreach locations for broader security coverage within your premises. These security cameras deliver high resolution 5 MP video streamed in efficient H.265 encoding, dimmable 20m+ IR illumination, powerful low light performance, and a built-in microphone. Robust IP67 weather and IK10 vandal rating combined with built-in heater for extended temperature range make these cameras perfectly suited for challenging conditions. FortiCamera CD51 is a fixed lens model with convenient 95° view angle, while FortiCamera CD55 offers a motorized 4x zoom lens with autofocus to capture every detail in high quality over a wider distance range. A wide range of accessories are available to give you hassle free mounting for indoor and outdoor use.
Viktiga egenskaper
Fortinet 5 Megapixel Fixed Dome IP Camera, 20m IR LED, 2.8mm fixed lens, 1x 10/100 port with 802.3af PoE, Audio, HDR, Wifi, BLE, Vandal proof, Indoor/Outdoor Use, Rated IP67. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 95°, Lens viewing angle, vertical: 72°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm
Teknisk specifikation
Performance
| Type | IP security camera |
|---|
| Placement supported | Indoor & outdoor |
|---|
| Connectivity technology | Wired & Wireless |
|---|
| Wide Dynamic Range (WDR) | Yes |
|---|
| Antennas quantity | 1 |
|---|
| Antenna type | Internal |
|---|
| Certification | FCC Class B / ICES / CE / CB |
|---|
Design
| Form factor | Dome |
|---|
| Mounting type | Ceiling/wall |
|---|
| Product colour | Black,White |
|---|
| Protection features | Vandal proof |
|---|
| International Protection (IP) code | IP67 |
|---|
| IK code | IK10 |
|---|
| Weatherproof | Yes |
|---|
Camera
| Minimum illumination | 0.01 lx |
|---|
| Lens viewing angle, horizontal | 95 ° |
|---|
| Lens viewing angle, vertical | 72 ° |
|---|
| Lens viewing angle, diagonal | 118 ° |
|---|
Image sensor
| Sensor type | CMOS |
|---|
| Number of sensors | 1 |
|---|
| Optical sensor size | 1/2.8 " |
|---|
Lens system
| Number of lenses | 1 |
|---|
| Fixed focal length | 2.8 mm |
|---|
Night vision
| Night vision | Yes |
|---|
| Night vision distance | 20 m |
|---|
| LED type | IR |
|---|
Video
| Maximum resolution | 1024 x 768 pixels |
|---|
| Total megapixels | 5 MP |
|---|
| Video compression formats | H.264,H.265,HEVC |
|---|
| Supported graphics resolutions | 320 x 240,640 x 480 (VGA),1024 x 768 (XGA) |
|---|
| Supported video modes | 720p,1080p |
|---|
| Frame rate | 30 fps |
|---|
| Noise reduction | Yes |
|---|
| Noise reduction technology | 3D noise reduction |
|---|
Audio
| Audio system | 1-way |
|---|
| Built-in microphone | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | Yes |
|---|
| Bluetooth | Yes |
|---|
| Ethernet interface type | Fast Ethernet |
|---|
| Networking standards | IEEE 802.3af |
|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Power
| Power source type | PoE |
|---|
| Power consumption (typical) | 12.95 W |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 50 °C |
|---|
| Operating relative humidity (H-H) | 5 - 90 % |
|---|
Weight & dimensions
| Width | 120 mm |
|---|
| Depth | 120 mm |
|---|
| Height | 97 mm |
|---|
| Diameter | 498 mm |
|---|
| Weight | 498 g |
|---|
Packaging content
| Number of cameras | 1 |
|---|
