Produktbeskrivning

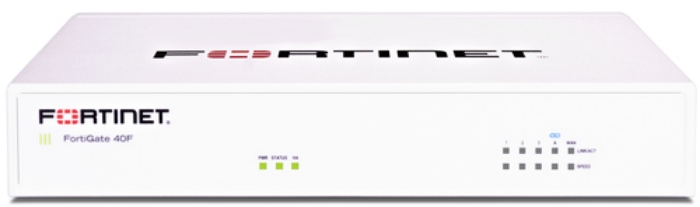

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.



Viktiga egenskaper

Fortinet 5 x GE RJ45 ports (including 1 x WAN Port, 4 x Internal Ports) with Embedded 3G/4G/LTE wireless wan module, 2 external SMA WWAN antennas included. Firewall throughput: 5 Gbit/s, Firewall throughput: 7.5 Mpps, IPSec VPN throughput: 4.4 Gbit/s. Heat dissipation: 52.55 BTU/h. Connectivity technology: Wired, Ethernet LAN data rates: 10,100,1000 Mbit/s, Console port: RJ-45. Form factor: Desktop. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 3 A



Teknisk specifikation

Firewall throughput	5 Gbit/s
Firewall throughput	7.5 Mpps
IPSec VPN throughput	4.4 Gbit/s
IPS/IDS throughput	1000 Mbit/s
SSL inspection throughput	310 Mbit/s
Security policies (max)	5000
Firewall latency	4 µs

Heat dissipation	52.55 BTU/h
Reset button	Yes
Noise level	0 dB
Certification	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, ICSA Labs

VPN tunnels quantity	250
Active TCP connections (max)	700000

Domains quantity	10

LED indicators	Yes

Connectivity technology	Wired
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Ethernet LAN data rates	10,100,1000 Mbit/s
Console port	RJ-45
Number of console ports	1
WAN connection	Ethernet (RJ-45)

Form factor	Desktop

AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Input current	3 A
Power consumption (typical)	12.4 W
Power consumption (max)	15.4 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 2250 m

Width	216 mm
Depth	160 mm
Height	38.5 mm
Weight	1000 g

Firewall throughput	5000 Mbit/s
