Produktbeskrivning

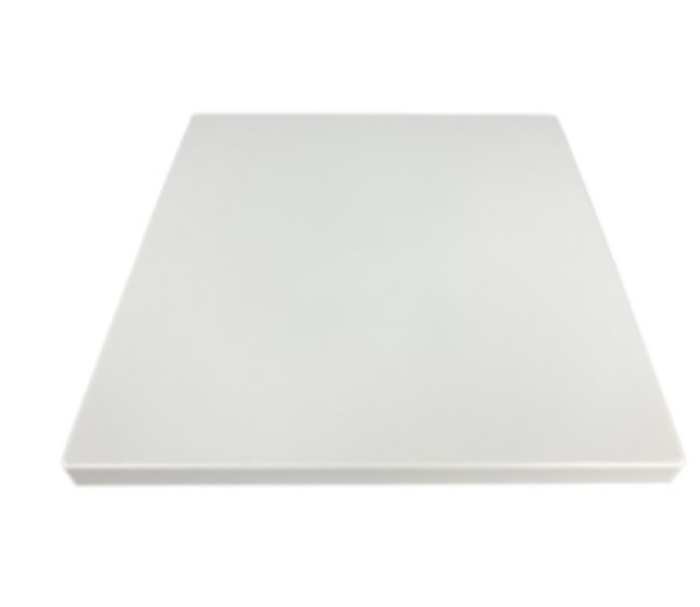

This high gain directional antenna is well suited for use outdoors, in warehouses, or in
manufacturing environments where it must withstand exposure to moisture and dust. The
narrow beam widths of this dual-polarized antenna are ideal for high-density environments
including large public venues. This antenna features ten dual band pigtails and Type N
connectors. An articulating mount is included with the antenna



Viktiga egenskaper

Fortinet FANT-10ACAX-1213-D-N. Antenna gain level (max): 13 dBi, Frequency band: 2.4/5 GHz, Impedance: 50 Ω. Antenna type: Directional antenna, Antenna connector type: N-type, Connector gender: Male. Width: 371 mm, Depth: 371 mm, Height: 38.1 mm



Teknisk specifikation

Antenna gain level (max)	13 dBi
Frequency band	2.4/5 GHz
Impedance	50 Ω
Horizontal beam width	60 °
Vertical beam width	65 °

Antenna type	Directional antenna
Antenna connector type	N-type
Connector gender	Male
Voltage Standing Wave Ratio (VSWR)	≤2.0
International Protection (IP) code	IP54
Product colour	White

Operating temperature (T-T)	-40 - 60 °C

Width	371 mm
Depth	371 mm
Height	38.1 mm
Weight	1180 g
