Produktbeskrivning

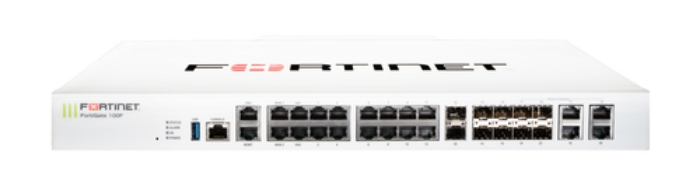

The FortiGate 100F series delivers next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with high-powered security processors for optimized network performance, security efficacy and deep visibility. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.



Viktiga egenskaper

Fortinet 22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, 480GB onboard storage, dual power supplies redundancy.. Firewall throughput: 20 Gbit/s, IPSec VPN throughput: 11.5 Gbit/s, IPS/IDS throughput: 2600 Mbit/s. Heat dissipation: 121.13 BTU/h, Mean time between failures (MTBF): 40.4 h. Management platform: FortiOS. Connectivity technology: Wired, Ethernet LAN data rates: 10,100,1000 Mbit/s, Console port: RJ-45. Storage media type: SSD, Total storage capacity: 480 GB, SSD capacity: 480 GB



Teknisk specifikation

Firewall throughput	20 Gbit/s
IPSec VPN throughput	11.5 Gbit/s
IPS/IDS throughput	2600 Mbit/s
SSL inspection throughput	1000 Mbit/s
Security policies (max)	10000
Default number of virtual firewalls	10
Maximum firewall connections per second	56000
Firewall latency	5 µs
Maximum number of virtual firewalls	10
Maximum firewall connections	1500000

Heat dissipation	121.13 BTU/h
Mean time between failures (MTBF)	40.4 h

Wi-Fi	No
Concurrent SSL/VPN connections (maximum)	16000
Concurrent SSL/VPN connections (default)	135000

Firewall security	Yes

LED indicators	Yes
Management platform	FortiOS

Connectivity technology	Wired
USB 2.0 ports quantity	1
Combo SFP ports quantity	4
Ethernet LAN (RJ-45) ports	12
Ethernet LAN data rates	10,100,1000 Mbit/s
Console port	RJ-45
Number of console ports	1
WAN connection	Ethernet (RJ-45)
SFP module slots quantity	4
SFP+ module slots quantity	2
Ethernet DMZ ports quantity	2

Storage media type	SSD
SSD capacity	480 GB
Total storage capacity	480 GB

Rack mounting	Yes
Form factor	1U

AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Input current	0.5 A
Power consumption (max)	39.1 W
Power consumption (typical)	35.3 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 2250 m

Width	432 mm
Depth	25 mm
Height	44 mm
Weight	3430 g

Firewall throughput	20000 Mbit/s
