Produktbeskrivning

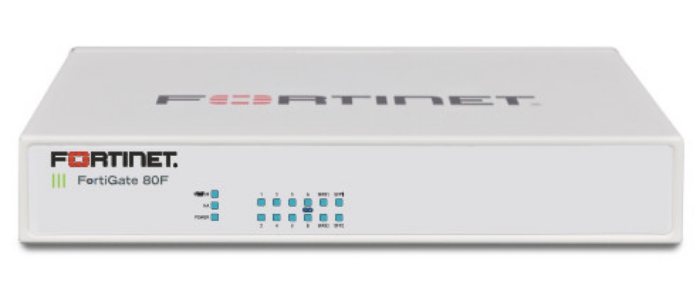

The FortiGate 80F series provides an application-centric, scalable, and secure SD-WAN solution in a compact, fanless, desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

FortiOS
FortiGates are the foundation of the Fortinet Security Fabric—the core is FortiOS. All security and networking capabilities across the entire FortiGate platform are controlled with one intuitive operating system. FortiOS reduces complexity, costs, and response times by truly consolidating next-generation security products and services into one platform.



Viktiga egenskaper

Fortinet 8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports.. Firewall throughput: 10 Gbit/s, IPSec VPN throughput: 6500 Gbit/s, IPS/IDS throughput: 1400 Mbit/s. Security algorithms: 256-bit AES, HTTPS, IPSec, SHA-256, SSL/TLS. Connectivity technology: Wired, Ethernet LAN data rates: 1000 Mbit/s, Console port: RJ-45. AC input frequency: 50 - 60 Hz. Width: 216 mm, Depth: 160 mm, Height: 38.5 mm



Teknisk specifikation

Firewall throughput	10 Gbit/s
IPSec VPN throughput	6500 Gbit/s
IPS/IDS throughput	1400 Mbit/s
Maximum firewall connections	1500000
Firewall latency	3.23 µs
Default number of virtual firewalls	10
Maximum number of virtual firewalls	10
Maximum firewall connections per second	45000
Security policies (max)	5000

Noise level	0 dB

Wi-Fi	No

Security algorithms	256-bit AES,HTTPS,IPSec,SHA-256,SSL/TLS

LED indicators	Yes

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	6
Console port	RJ-45
Ethernet LAN data rates	1000 Mbit/s
Number of console ports	1
SFP module slots quantity	2

Number of fans	0 fan(s)

AC input frequency	50 - 60 Hz

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 2250 m

Width	216 mm
Depth	160 mm
Height	38.5 mm
Weight	2400 g

Firewall throughput	10000 Mbit/s
