Produktbeskrivning
FortiLAN Cloud- or FortiGate-Managed Access PointsFortiAP™ access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiLAN Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Singlepane-of-glass management console and protects your network from the latest security threats.
Viktiga egenskaper

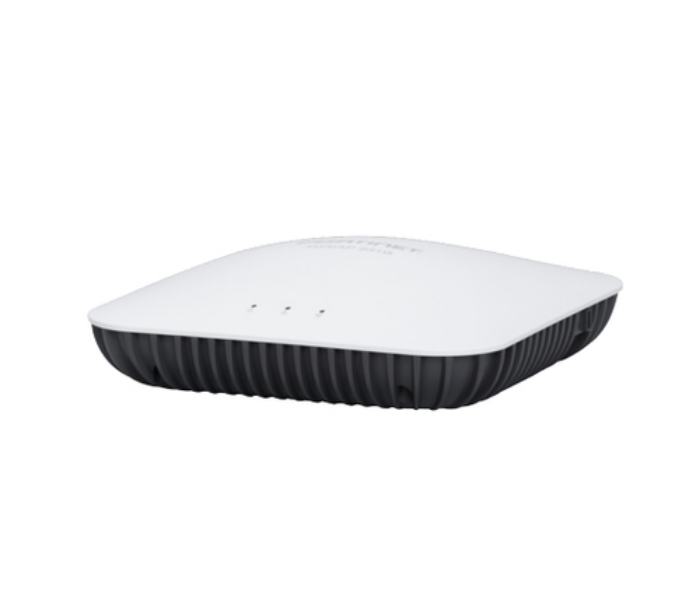

Fortinet FortiAP 231G. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 2401 Mbit/s. Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SSID, WEP, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White, Black
Teknisk specifikation
Features
| 2.4 GHz | Yes |
|---|
| 6 GHz | Yes |
|---|
| 5 GHz | Yes |
|---|
| Maximum data transfer rate | 2401 Mbit/s |
|---|
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
|---|
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
|---|
| Maximum data transfer rate (6 GHz) | 2401 Mbit/s |
|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
|---|
| Frequency band | 2.400–2.4835, 5.150 - 5.850, 6.425 - 7.125 GHz |
|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11j,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bz |
|---|
| Channel bandwidth | 40 MHz |
|---|
| Bluetooth Low Energy (BLE) | Yes |
|---|
| Tunnel forwarding | Yes |
|---|
| MIMO | Yes |
|---|
| MIMO type | Multi User MIMO |
|---|
| Spread spectrum method | OFDMA |
|---|
| Fit AP mode features | Mesh networking |
|---|
Security
| Security algorithms | EAP-AKA,EAP-FAST,EAP-GTC,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,SSID,WEP,WPA,WPA2,WPA3 |
|---|
| Wireless Intrusion Detection System (WIDS) | Yes |
|---|
Management features
| Local AP management | Serial port |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|
| USB connector type | USB Type-A |
|---|
| RS-232 interface | Yes |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|
Design
| Placement | Ceiling,Wall |
|---|
| Product colour | White,Black |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| LED indicators | Yes |
|---|
Antenna
| Antenna type | Internal |
|---|
Technical details
| Compliance certificates | CE,RoHS |
|---|
Weight & dimensions
| Width | 182.4 mm |
|---|
| Depth | 182.4 mm |
|---|
| Height | 54 mm |
|---|
| Weight | 800 g |
|---|
Packaging data
| Package weight | 1400 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Mounting kit | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -30 - 70 °C |
|---|
| Storage relative humidity (H-H) | 5 - 90 % |
|---|
