Produktbeskrivning

FortiLAN Cloud- or FortiGate-Managed Access Points

FortiAP™ access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiLAN Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Singlepane-of-glass management console and protects your network from the latest security threats.

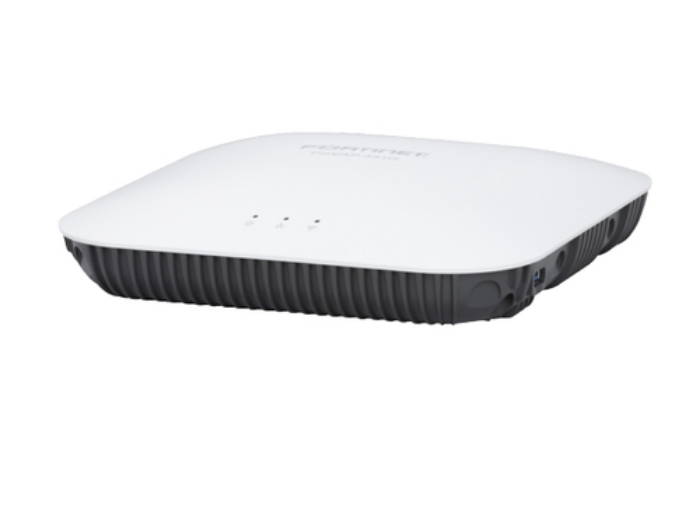

FortiAP 431G and 433G

These high performing enterprise class extended frequency band Wi-Fi 6E indoor APs provide three radios and four spatial streams. These access points support the 6 GHz band, OFDMA, and a 5 Gigabit Ethernet port. The APs can provide 24/7 scanning across all bands while still providing access on both the 2.4 GHz and 5 GHz bands or 2.4 Ghz and dual 5 GHz service or the AP can be configured to provide simultaneous access on 2.4 GHz, 5 GHz, and the 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and locationing applications



Viktiga egenskaper

Fortinet FortiAP 431G. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 4804 Mbit/s. Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White



Teknisk specifikation

2.4 GHz	Yes
6 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	4804 Mbit/s
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Maximum data transfer rate (6 GHz)	4804 Mbit/s
Ethernet LAN data rates	100,1000,2500,5000 Mbit/s
Frequency band	2.400–2.4835, 5.150 - 5.850, 6.425 - 7.125 GHz
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11j,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3bz
Channel bandwidth	40 MHz
Bluetooth Low Energy (BLE)	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Fit AP mode features	Mesh networking

Security algorithms	EAP-AKA,EAP-FAST,EAP-GTC,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,WPA,WPA2,WPA3
Wireless Intrusion Detection System (WIDS)	Yes

Local AP management	Serial port

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
USB connector type	USB Type-A
RS-232 interface	Yes

Power over Ethernet (PoE)	Yes
Power consumption (typical)	31.7 W

Placement	Ceiling,Wall
Product colour	White
LED indicators	Yes

Antenna type	Internal

Compliance certificates	CE,RoHS

Width	225 mm
Depth	225 mm
Height	54 mm
Weight	1400 g

Package weight	2400 g

AC adapter included	Yes
Mounting kit	Yes

Operating relative humidity (H-H)	5 - 90 %
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
