High Performance with Flexibility

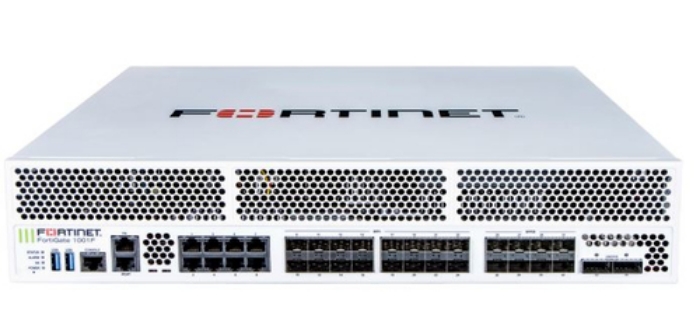

The FortiGate 1000F Series enables organizations to build security-driven networks that can weave security deep into their datacenter and across their hybrid IT architecture to protect any edge at any scale.

Powered by a rich set of AI/ML-based FortiGuard Services and an integrated security fabric platform, the FortiGate 1000F Series delivers coordinated, automated, end-to-end threat protection across all use cases.
The industry’s first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, FortiGate 1000F automatically controls, verifies, and facilitates user access to applications delivering consistent convergence with a seamless user experience.



Viktiga egenskaper

Fortinet FG-1000F. Firewall throughput: 198 Gbit/s, Firewall (UDP 1518) throughput: 198 Gbit/s, VPN throughput: 5.3 Gbit/s. Heat dissipation: 1211 BTU/h, Noise level: 66.7 dB. Connectivity technology: Wired, Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s, Console port: RJ-45. Form factor: 2U. AC input voltage: 100-240 V, AC input frequency: 50/60 Hz, Input current: 3 / 6 A



Teknisk specifikation

Firewall throughput	198 Gbit/s
Firewall (UDP 1518) throughput	198 Gbit/s
VPN throughput	5.3 Gbit/s
IPSec VPN throughput	55 Gbit/s
Maximum number of virtual firewalls	250
Default number of virtual firewalls	10
Firewall latency	3.45 µs
Maximum firewall connections	7500000
Security policies (max)	100000
Maximum firewall connections per second	650000

Heat dissipation	1211 BTU/h
Noise level	66.7 dB
Certification	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

Number of VLANs	4096

Domains quantity	250

Connectivity technology	Wired
Gigabit (fiber) ports quantity	8
USB 2.0 ports quantity	2
Console port	RJ-45
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Number of console ports	1
QSFP+ module slots quantity	2
Remote management port	RJ-45 (Gigabit)
SFP+ module slots quantity	16
Installed SFP+ modules quantity	16

Rack mounting	Yes
Form factor	2U

AC input voltage	100-240 V
AC input frequency	50/60 Hz
Input current	3 / 6 A
Power consumption (max)	408 W
Power consumption (typical)	210 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 3048 m

Width	443 mm
Depth	447.4 mm
Height	88.9 mm
Weight	9950 g

VPN throughput	5300 Mbit/s
Firewall throughput	198000 Mbit/s
