Produktbeskrivning

Converged Next-Generation Firewall and SD-WAN
The FortiGate and FortiWiFi 50G series integrate firewalling, SD-WAN, and security in one appliance, making them perfect for building secure networks at distributed enterprise sites and transforming WAN architecture at any scale.

The 50G series is powered by FortiOS, the industry’s first converged networking and security operating system. This convergence enables businesses to efficiently and optimally secure today’s dynamic digital infrastructures.

As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.

The 50G family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 50G family to optimize secure connections and deliver a robust user experience at branch locations.



Viktiga egenskaper

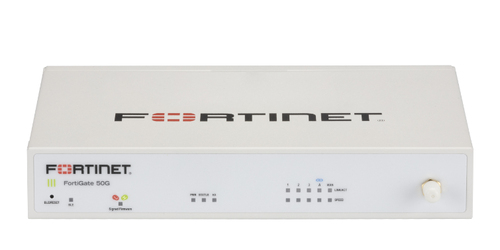

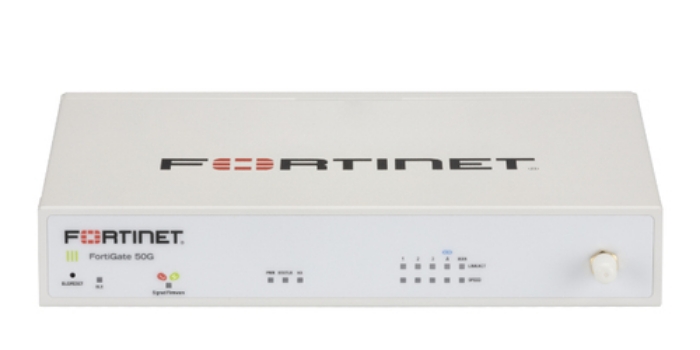

Fortinet FortiGate 51G-5G. Firewall throughput: 5 Gbit/s, Firewall throughput: 6000 Mpps, Firewall (UDP 1518) throughput: 5 Gbit/s. Mobile network generation: 5G, Data network: 5G, HSPA+, LTE, UMTS, WCDMA. Security algorithms: HTTPS, IPSec, SSL/TLS. Connectivity technology: Wired, Ethernet LAN data rates: 10,100,1000 Mbit/s, Console port: RJ-45. Storage media type: SSD, Total storage capacity: 64 GB, SSD capacity: 64 GB



Teknisk specifikation

Firewall throughput	6000 Mpps
Firewall throughput	5 Gbit/s
Firewall (UDP 1518) throughput	5 Gbit/s
IPSec VPN throughput	4.5 Gbit/s
IPS/IDS throughput	2250 Mbit/s
Threat protection throughput	1100 Mbit/s
SSL inspection throughput	1300 Mbit/s
Firewall latency	2.42 µs
Security policies (max)	2000
Maximum firewall connections per second	85000
Default number of virtual firewalls	5
Maximum firewall connections	720000
Maximum number of virtual firewalls	5

Data network	5G,HSPA+,LTE,UMTS,WCDMA
Mobile network generation	5G
MIMO	Yes

Security algorithms	HTTPS,IPSec,SSL/TLS

LED indicators	Yes

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	3
Ethernet LAN data rates	10,100,1000 Mbit/s
Console port	RJ-45
Number of console ports	1
DC-in jack	Yes
WAN connection	Ethernet (RJ-45)

Storage media type	SSD
Total storage capacity	64 GB
SSD capacity	64 GB
Number of SSDs installed	1

Rack mounting	No
Form factor	Desktop
Built-in display	No
Number of fans	0 fan(s)

AC input voltage	100-240 V
AC input frequency	50/60 Hz
Input current	0.4 A
DC input voltage	12 V

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 3048 m

Width	216 mm
Depth	160 mm
Height	40.5 mm
