Produktbeskrivning

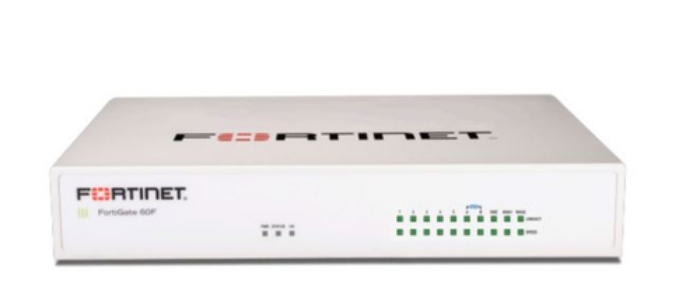

The FortiGate/FortiWiFi 60F series provides a fast and secure SD-WAN solution in a compact
fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects
against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking
approach provides tight integration of the network to the new generation of security.



Viktiga egenskaper

Fortinet 10 x GE RJ45 ports (including 7 x Internal Ports, 2 x WAN Ports, 1 x DMZ Port).. Firewall throughput: 10 Gbit/s, VPN throughput: 0.9 Gbit/s, IPS/IDS throughput: 1400 Mbit/s. Heat dissipation: 63.8 BTU/h. Security algorithms: 256-bit AES, HTTPS, IPSec, SHA-256, SSL/TLS. Connectivity technology: Wired, Console port: RJ-45, WAN connection: Ethernet (RJ-45). Form factor: Desktop



Teknisk specifikation

Firewall throughput	10 Gbit/s
VPN throughput	0.9 Gbit/s
IPS/IDS throughput	1400 Mbit/s
Security policies (max)	5000
Firewall latency	4 µs

Heat dissipation	63.8 BTU/h
Antenna gain level (max)	0 dBi
Certification	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB

Security algorithms	256-bit AES,HTTPS,IPSec,SHA-256,SSL/TLS

LED indicators	Yes

Connectivity technology	Wired
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	10
Console port	RJ-45
Number of console ports	1
Ethernet DMZ ports quantity	1
WAN connection	Ethernet (RJ-45)

Form factor	Desktop

AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Input current	0.6 A
DC input voltage	12 V
Power consumption (typical)	17 W
Power consumption (max)	18.5 W

Harmonized System (HS) code	85176990

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 2250 m

Width	216 mm
Depth	160 mm
Height	38.5 mm
Weight	1010 g

Firewall throughput	10000 Mbit/s
VPN throughput	900 Mbit/s
