Produktbeskrivning

The FortiGate/FortiWiFi 60F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking securely integrates with the new generation of cybersecurity solutions

3G/4G WAN Connectivity
The FortiGate 60F Series includes a USB port that allows you to plug
in a compatible third-party 3G/4G USB modem, providing additional
WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor
Designed for small environments, you can place it on a desktop or
wall-mount it. It is small, lightweight yet highly reliable with superior
MTBF (Mean Time Between Failure), minimizing the chance of a
network disruption.

Extends Security to Access Layer with FortiLink
Ports
FortiLink protocol enables you to converge security and the network
access by integrating the FortiSwitch into the FortiGate as a logical
extension of the NGFW. These FortiLink enabled ports can be
reconfigured as regular ports as needed.



Viktiga egenskaper

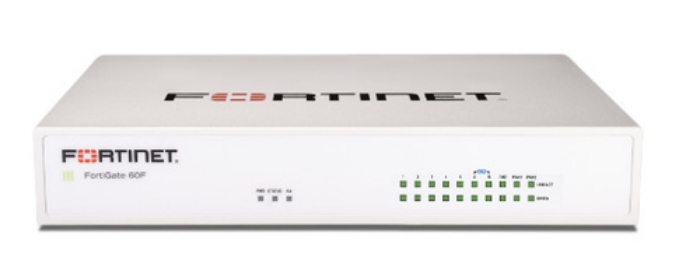

Fortinet FortiGate-61F Hardware plus 5 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP). Firewall throughput: 10 Gbit/s, VPN throughput: 0.9 Gbit/s, IPS/IDS throughput: 1400 Mbit/s. Heat dissipation: 64.8 BTU/h. Security algorithms: 256-bit AES, HTTPS, IPSec, SHA-256, SSL/TLS. Connectivity technology: Wired, Console port: RJ-45, WAN connection: Ethernet (RJ-45). Form factor: Desktop



Teknisk specifikation

Firewall throughput	10 Gbit/s
VPN throughput	0.9 Gbit/s
IPS/IDS throughput	1400 Mbit/s
Firewall latency	4 µs
Security policies (max)	5000

Heat dissipation	64.8 BTU/h
Antenna gain level (max)	0 dBi

Wi-Fi	No

Security algorithms	256-bit AES,HTTPS,IPSec,SHA-256,SSL/TLS

LED indicators	Yes

Connectivity technology	Wired
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	10
Console port	RJ-45
Number of console ports	1
WAN connection	Ethernet (RJ-45)
Ethernet DMZ ports quantity	2

Form factor	Desktop

AC input frequency	50 - 60 Hz
Input current	0.2 A
Power consumption (max)	19 W
Power consumption (typical)	16.5 W

Harmonized System (HS) code	85176990

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 2250 m

Width	216 mm
Depth	160 mm
Height	38.5 mm
Weight	1010 g

Firewall throughput	10000 Mbit/s
VPN throughput	900 Mbit/s
