Produktbeskrivning

Security, Performance, and Manageability
The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar

FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center
aggregation, enabling businesses to converge their security and network access.

Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next-Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric.
This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage.



Viktiga egenskaper

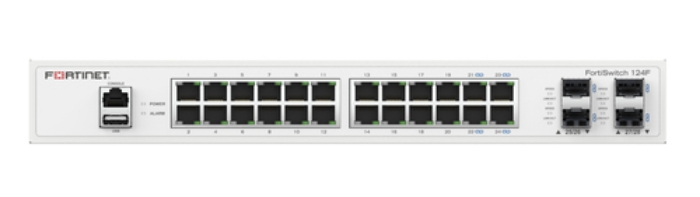

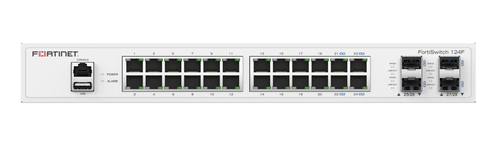

Fortinet FortiSwitch-124F is a performance/price competitive switch with 24x GE port + 4x SFP+ port + 1x RJ45 console. Fanless design.. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 128 Gbit/s. Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Console port	RJ-45

10G support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	32000 entries
Switching capacity	128 Gbit/s
Throughput	190 Mpps
Packet buffer memory	2 MB

Access Control List (ACL)	Yes
Access Control List (ACL) rules	768

Rack mounting	Yes
Form factor	1U
Product colour	White
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR3-SDRAM
Internal memory	512 MB
Flash memory	64 MB
Mean time between failures (MTBF)	87660 h

Redundant power supply (RPS) support	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	24.8 W
Power consumption (max)	26.3 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Heat dissipation	89.683 BTU/h

Width	440 mm
Depth	260 mm
Height	44 mm
Weight	3560 g

Harmonized System (HS) code	85176990
