Produktbeskrivning
The FortiSwitch™ Access Family is tailored to meet the unique demands of enterprise branch offices and small businesses. An unparalleled combination of security, ease of use, and scalability makes FortiSwitch™ the ideal choice for Ethernet infrastructure. Managing a remote enterprise branch or small business network can be a challenging task due to various factors including a lack of visibility of connected devices, limited time and tools for LAN management, and a shortage of skilled personnel. The FortiSwitch Secure Access family seamlessly integrates Ethernet networking with advanced security features, effectively eliminating the silos that hinder day-to-day management. Feature-rich and easy to manage with a low total cost of ownership, FortiSwitch emerges as the optimal choice for remote enterprise-branch and small-businesses Ethernet networks.
Viktiga egenskaper

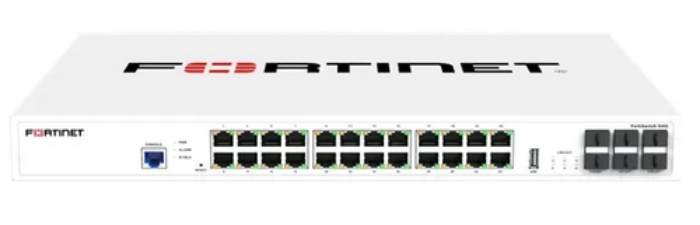

Fortinet FS-124G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP module slots quantity | 6 |
|---|
| Console port | RJ-45 |
|---|
Network
| Networking standards | IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ba,IEEE 802.3bj,IEEE 802.3bm,IEEE 802.3bt,IEEE 802.3bz,IEEE 802.3cd,IEEE 802.3u,IE |
|---|
| 10G support | Yes |
|---|
| Link aggregation | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| Flow control support | Yes |
|---|
| VLAN support | Yes |
|---|
| Virtual LAN features | VLAN mapping |
|---|
| Number of VLANs | 4000 |
|---|
Data transmission
| MAC address table | 32000 entries |
|---|
| Switching capacity | 240 Gbit/s |
|---|
| Jumbo frames support | Yes |
|---|
| Packet buffer memory | 2 MB |
|---|
Security
| DHCP features | DHCP snooping |
|---|
| Access Control List (ACL) | Yes |
|---|
| Loop protection | Yes |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 1U |
|---|
| International Protection (IP) code | IP20 |
|---|
Performance
| Memory type | DDR4-SDRAM |
|---|
| Internal memory | 1024 MB |
|---|
| Flash memory | 256 MB |
|---|
| Noise level | 48.2 dB |
|---|
Power
| Power source | AC |
|---|
| Power supply included | Yes |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power consumption (typical) | 880 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) ports quantity | 24 |
|---|
| Total Power over Ethernet (PoE) budget | 780 W |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Width | 440 mm |
|---|
| Depth | 310 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 4860 g |
|---|
