Security, Performance, and Manageability
The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar

FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center
aggregation, enabling businesses to converge their security and network access.

Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next-Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric.
This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage.



Viktiga egenskaper

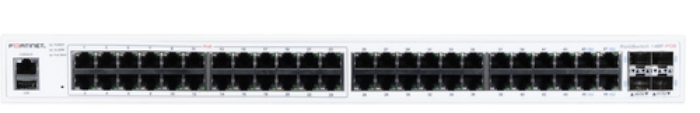

Fortinet FortiSwitch-148F-POE is a performance/price competitive L2+ management switch with 48x GE port + 4x SFP+ port + 1x RJ45 console. Port 1- 24 are POE ports with automatic Max 370W POE output limit (24 port 802.3af or 12 port 802.3at). Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch layer	L2

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4

Networking standards	IEEE 802.3af,IEEE 802.3at
10G support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	32000 entries
Switching capacity	176 Gbit/s
Throughput	260 Mpps
Packet buffer memory	2 MB

Access Control List (ACL)	Yes
Access Control List (ACL) rules	768

Rack mounting	Yes
Form factor	1U
Product colour	White
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR3-SDRAM
Internal memory	512 MB
Flash memory	64 MB
Mean time between failures (MTBF)	87660 h

Redundant power supply (RPS) support	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	474.8 W
Power consumption (max)	476.3 W

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	370 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Heat dissipation	195.73 BTU/h

Width	440 mm
Depth	310 mm
Height	44 mm
Weight	4680 g

Harmonized System (HS) code	85176990
