Produktbeskrivning

The FortiSwitch™ campus core and data center family excel in performance, security, and resiliency, making them the optimal choice for both campus core and data center networking needs.

The proliferation of virtualization, cloud computing, and the increasing volume of data generated by users and IoT devices has necessitated dense high-bandwidth Ethernet networking and aggregation. In these environments, the paramount concerns are data security, performance, and resiliency. These dynamic settings demand efficient network management, monitoring, and optimization efforts while simplifying overall network complexity. The FortiSwitch campus core and data center switching architecture empowers network administrators with the requisite performance, control, and manageability for these demanding scenarios. Its seamless security integration and userfriendly management interface establish a robust foundation for your next-generation campus core or data center.



Viktiga egenskaper

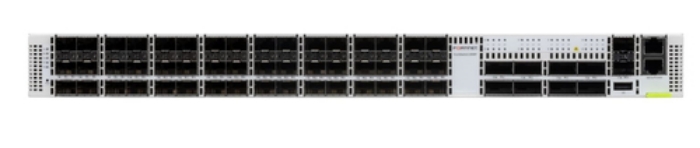

Fortinet FortiSwitch-2048F. Switch type: Managed, Switch layer: L2/L3. MAC address table: 94000 entries, Switching capacity: 4000 Gbit/s. Networking standards: IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3
Web-based management	Yes

Basic switching RJ-45 Ethernet ports type	No
SFP+ module slots quantity	2
SFP28 ports quantity	48
QSFP28 ports quantity	8

Networking standards	IEEE 802.1ad,IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3ba,IEEE 802.3bj,IEEE 802.3bm,IEEE 802.3by,IEEE 802.3z,IEEE 802.3u,IEEE 802.3x
10G support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
Flow control support	Yes
VLAN support	Yes

MAC address table	94000 entries
Switching capacity	4000 Gbit/s
Latency (1 Gbps)	1 µs
Jumbo frames support	Yes
Packet buffer memory	32 MB

DHCP features	DHCP snooping,DHCP relay,DHCP server
IGMP snooping	Yes

Multicast support	Yes

Management protocols	SNMP v1/v2c/v3

Rack mounting	Yes
Form factor	1U
Product colour	Black
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR4-SDRAM
Internal memory	8192 MB
Flash memory	8192 MB
Noise level	69.36 dB

Power source	AC
Power supply included	Yes
Number of power supply units	2
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	175.7 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %
Heat dissipation	406 BTU/h

Width	438.5 mm
Depth	460 mm
Height	43.5 mm
Weight	9880 g
