Produktbeskrivning

Security, Performance, and Manageability
The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes.

The FortiSwitch™ campus family offers an unparalleled combination of security, performance, and manageability, making it the ideal choice for the enterprise campus that prioritize safeguarding against threats.
As campus network design continues to adapt to emerging technologies and evolving business requirements, the FortiSwitch enterprise campus switching architecture empowers network administrators with enhanced visibility, control, and manageability. The platform’s scalability, agility, and ease of management contribute to a highly secure environment, providing a robust foundation for any sized campus.



Viktiga egenskaper

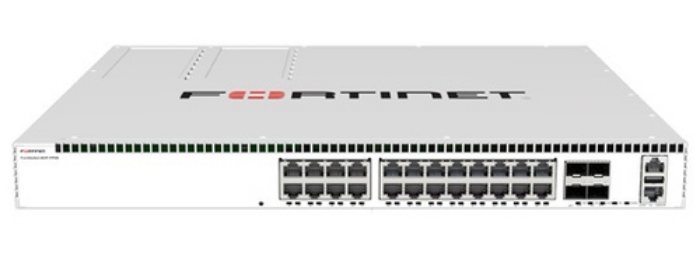

Fortinet FS-624F-FPOE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 5G Ethernet (100/1000/5000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 4, Console port: RJ-45. MAC address table: 64000 entries, Switching capacity: 440 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae,.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	5G Ethernet (100/1000/5000)
Installed SFP+ modules quantity	4
Console port	RJ-45

Networking standards	IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3x
Routing entries	16000
Ethernet LAN data rates	10,100,1000,2500,5000 Mbit/s
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4000

MAC address table	64000 entries
Switching capacity	440 Gbit/s
Latency (1 Gbps)	1 µs
Jumbo frames support	Yes
Packet buffer memory	8 MB

DHCP features	DHCP relay,DHCP server
Access Control List (ACL) IPv4 entries	36000

Multicast support	Yes
IPv4 multicast entries	12000

Rack mounting	Yes
Form factor	1U
Product colour	Silver
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Memory type	DDR4-SDRAM
Internal memory	4000 MB
Flash memory	32 MB
Noise level	54.88 dB
Mean time between failures (MTBF)	87660 h

Power source	AC/PoE
Power supply included	Yes
Number of power supply units	2
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	1680 W

Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	1440 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Heat dissipation	969 BTU/h

Width	440 mm
Depth	442 mm
Height	44 mm
Weight	7407 g
