Produktbeskrivning

Security, Performance, and Manageability
The FortiSwitch™ campus family offers an unparalleled combination of security, performance, and manageability, making it the ideal choice for the enterprise campus that prioritize safeguarding against threats.

As campus network design continues to adapt to emerging technologies and evolving business requirements, the FortiSwitch enterprise campus switching architecture empowers network administrators with enhanced visibility, control, and manageability. The platform’s scalability, agility, and ease of management contribute to a highly secure environment, providing a robust foundation for any sized campus.



Viktiga egenskaper

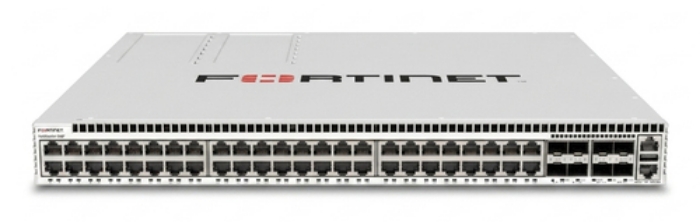

Fortinet FS-648F. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 5G Ethernet (100/1000/5000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 64000 entries, Switching capacity: 720 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1AE, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1s,.... Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	5G Ethernet (100/1000/5000)
2.5G Ethernet (copper) ports quantity	32
Combo SFP ports quantity	8
Fiber optic connector	SFP,SFP+,SFP28
Console port	RJ-45

Networking standards	IEEE 802.1ab,IEEE 802.1AE,IEEE 802.1x,IEEE 802.1ad,IEEE 802.1AX,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3ba,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3bj,IEEE 802.1Qbb,IEEE 802.1p
Port mirroring	Yes
Policy-based routing	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Link aggregation	Yes
Ethernet LAN data rates	10,100,1000,2500,5000 Mbit/s
Spanning tree protocol	Yes
Flow control support	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN,Private VLAN,VLAN mapping
Number of VLANs	4000

MAC address table	64000 entries
Switching capacity	720 Gbit/s
Forwarding rate	1071 Mpps
Latency (1 Gbps)	1 µs
Static route	Yes
Jumbo frames support	Yes
Packet buffer memory	8 MB

DHCP features	DHCP snooping,DHCP server,DHCP relay
Access Control List (ACL) IPv4 entries	300000
Access Control List (ACL) IPv6 entries	75000
IGMP snooping	Yes
IGMP proxy	Yes
Loop protection	Yes
IP-MAC-Port binding	Yes
Authentication	MAC-based authentication,Port-based authentication
Authentication type	RADIUS

Multicast support	Yes

Routing protocols	OSPFv2,RIP-2,VRRP,BGP,IS-IS

Rack mounting	Yes
Form factor	1U
Product colour	Silver
Airflow direction	Front-to-back airflow

Memory type	DDR4-SDRAM
Internal memory	4000 MB
Flash memory	32 MB
Noise level	57.97 dB
Mean time between failures (MTBF)	87660 h

Compliance certificates	Federal Communications Commission (FCC),CE,RCM,VCCI,UL,CB,RoHS

Power source	AC
Power supply included	Yes
Number of power supply units	2
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	300 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Heat dissipation	590 BTU/h

Width	440 mm
Depth	442 mm
Height	44 mm
Weight	7149 g

Hot-Plug support	Yes
Power supply	350 W
Cabling technology	10/100/1000
