Produktbeskrivning

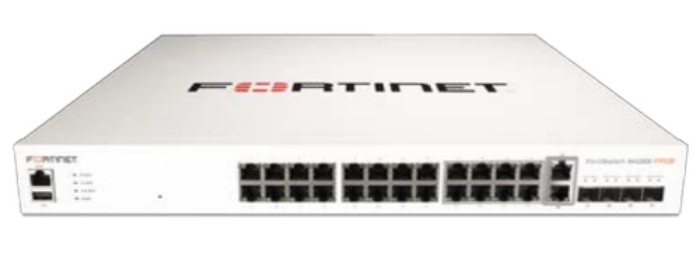

The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single-pane-of-glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch and campus deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Viktiga egenskaper
Fortinet Layer 2/3 FortiGate switch controller compatible PoE+ switch with 16 x GE RJ45 ports, 8 x MultiGIG 2.5 GE UPOE (60W) capable RJ45 ports, 2 X MulitGiG 5GE RJ45 ports, 4X SFP+, with automatic Max 421W POE output limit. Basic switching RJ-45 Ethernet ports type: 5G Ethernet (100/1000/5000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 16000 entries, Switching capacity: 172 Gbit/s. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Teknisk specifikation
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 26 |
|---|
| Basic switching RJ-45 Ethernet ports type | 5G Ethernet (100/1000/5000) |
|---|
| Gigabit Ethernet (copper) ports quantity | 16 |
|---|
| 2.5G Ethernet (copper) ports quantity | 8 |
|---|
| SFP+ module slots quantity | 4 |
|---|
Network
| Link aggregation | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Number of VLANs | 4000 |
|---|
Data transmission
| MAC address table | 16000 entries |
|---|
| Switching capacity | 172 Gbit/s |
|---|
| Latency (10-100 Mbps) | 1 µs |
|---|
| Packet buffer memory | 2 MB |
|---|
Security
| Access Control List (ACL) | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 1U |
|---|
| LED indicators | Yes |
|---|
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
|---|
Performance
| Memory type | DDR4-SDRAM |
|---|
| Internal memory | 1000 MB |
|---|
| Flash memory | 256 MB |
|---|
Power
| Power supply included | Yes |
|---|
| Redundant power supply (RPS) support | Yes |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Power consumption (typical) | 420 W |
|---|
| Power consumption (max) | 442 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
| Heat dissipation | 132734 BTU/h |
|---|
Weight & dimensions
| Width | 440 mm |
|---|
| Depth | 410 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 5900 g |
|---|
