Produktbeskrivning

Performance and Features Designed for Harsh Environments
FortiSwitch™ Rugged switches deliver all of the enterprise features, performance, and
security of the trusted FortiSwitch secure, simple, scalable Ethernet solution. Our rugged
switches have added hardware reinforcement and software features that make them ideal
for deployments in hostile environments, as well as operational technology (OT) industrial
and control networks.
Resilient, sturdy, and capable of withstanding intense temperature fluctuations,
FortiSwitch Rugged ensures the integrity and performance of mission-critical networks
in even the most challenging of deployments. When united with FortiGate Rugged NextGeneration Firewalls, IT and OT network administrators can deploy a converged Ethernet
architecture that offers powerful cybersecurity protection engineered to survive in hostile
environments.



Viktiga egenskaper

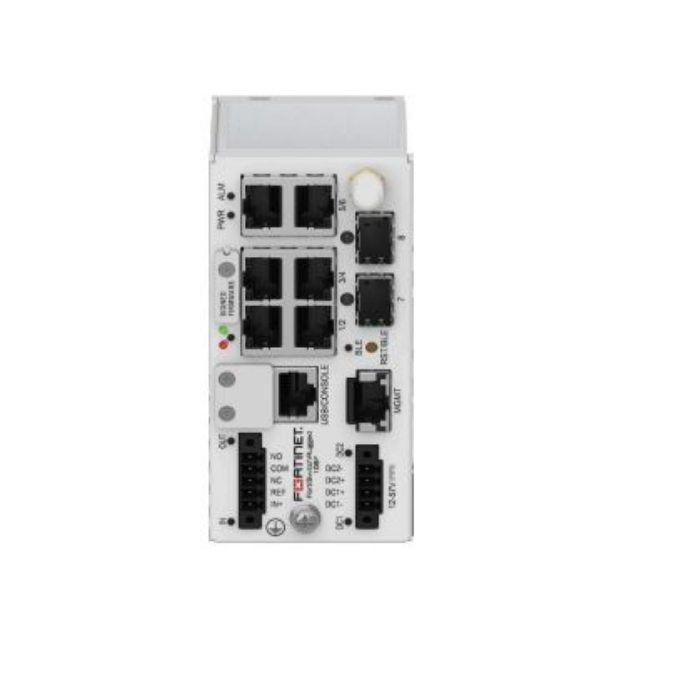

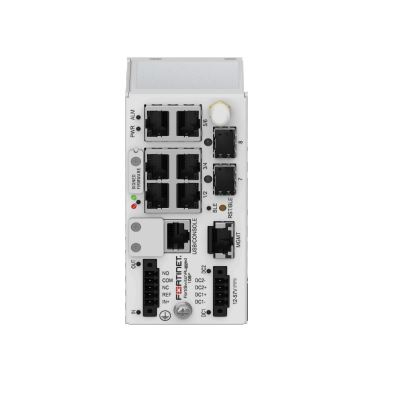

Fortinet FortiSwitch Rugged 108F. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... DC input voltage: 12 - 57 V



Teknisk specifikation

Switch type	Unmanaged
Switch layer	L2
Web-based management	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Gigabit Ethernet (copper) ports quantity	8
SFP module slots quantity	2
Console port	RJ-45

Networking standards	IEEE 802.1ad,IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
10G support	Yes
Auto-negotiation	Yes
Spanning tree protocol	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4096

MAC address table	16000 entries
Switching capacity	16 Gbit/s
Packet buffer memory	1.5 MB

DHCP features	DHCP snooping,DHCP relay,DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes

Management protocols	SNMP v1/v2c/v3

Certification	FCC, CE, RCM, VCCI, BSMI (Class A), ICES, UKCA

Fanless	Yes

Power source	DC
DC input voltage	12 - 57 V
Power consumption (max)	17 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 90 %
Heat dissipation	58 BTU/h

Width	55 mm
Depth	140 mm
Height	113 mm
Weight	566 g
