Produktbeskrivning

8x 1G/100M/10M RJ45, 4x 1G/100M SFP, 240W



Viktiga egenskaper

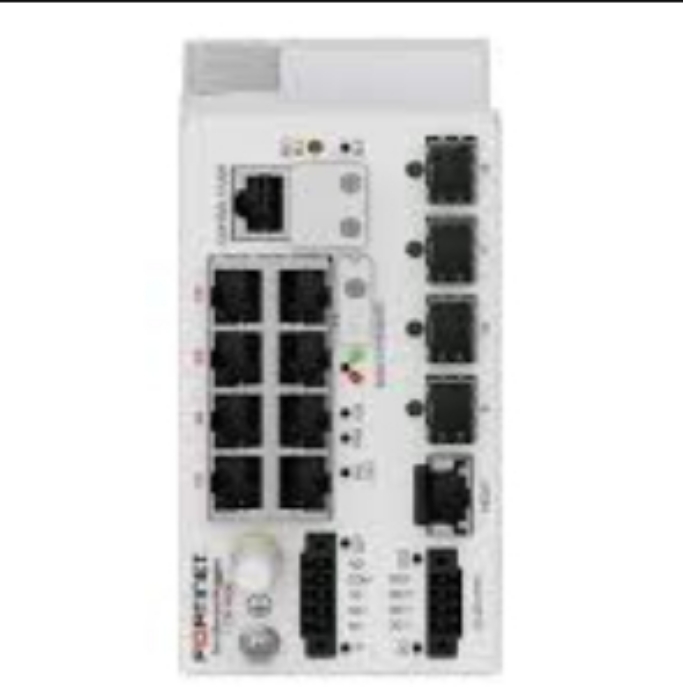

Fortinet FSR-112F-POE. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 4, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting



Teknisk specifikation

Web-based management	Yes
Configuring Location Settings (CLI)	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	4
Console port	RJ-45

Networking standards	IEEE 802.3af,IEEE 802.3at
Link aggregation	Yes
Spanning tree protocol	Yes
Number of VLANs	4000

MAC address table	16000 entries
Switching capacity	24 Gbit/s
Latency (1 Gbps)	1 µs

Access Control List (ACL)	Yes

Rack mounting	Yes
Product colour	White
International Protection (IP) code	IP40
Certification	FCC, CE, RCM, VCCI, BSMI (Class A), ICES, UKCA

Memory type	DDR4-SDRAM
Internal memory	1000 MB
Flash memory	32 MB
Fanless	Yes

Power source	AC
Power supply included	Yes

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	22 W
Total Power over Ethernet (PoE) budget	264 W

Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	5 - 90 %

Width	66.5 mm
Depth	150 mm
Height	127 mm
Weight	1023 g
