Produktbeskrivning

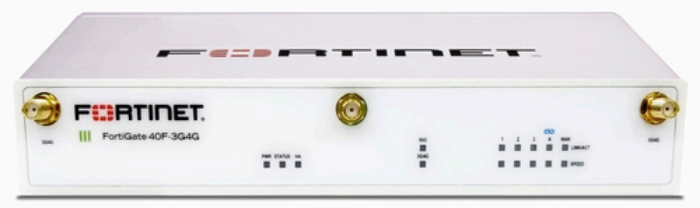

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.



Viktiga egenskaper

Fortinet 5 x GE RJ45 ports (including 1 x WAN Port, 4 x Internal Ports), Wireless (802.11a/b/g/n/ac), with Embedded 3G/4G/LTE wireless wan module, 2 external SMA WWAN antennas included Region Code E. Firewall throughput: 5 Gbit/s, Firewall throughput: 7.5 Mpps, IPSec VPN throughput: 4.4 Gbit/s. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Connectivity technology: Wired & Wireless. Form factor: Desktop. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 3 A



Teknisk specifikation

Firewall throughput	7.5 Mpps
Firewall throughput	5 Gbit/s
IPSec VPN throughput	4.4 Gbit/s
IPS/IDS throughput	1000 Mbit/s
SSL inspection throughput	490 Mbit/s
Firewall latency	2.97 µs

Wi-Fi	Yes
Wi-Fi standards	802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Active TCP connections (max)	700000
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)

Connectivity technology	Wired & Wireless

Form factor	Desktop

AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Input current	3 A
Power consumption (max)	19.8 W
Power consumption (typical)	18.6 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating altitude	0 - 2250 m

Width	216 mm
Depth	160 mm
Height	40.5 mm
Weight	1000 g

Firewall throughput	5000 Mbit/s
