Produktbeskrivning

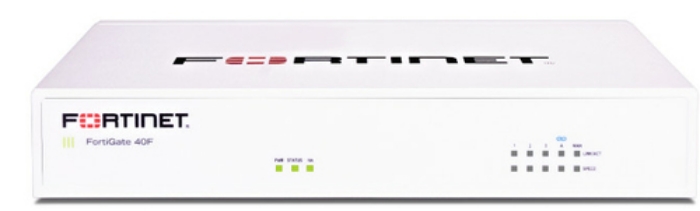

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD- WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.



Viktiga egenskaper

Fortinet FortiWiFi-40F Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP). Firewall throughput: 5 Gbit/s, Firewall throughput: 7.5 Mpps, Firewall (UDP 1518) throughput: 5 Gbit/s. Heat dissipation: 56.64 BTU/h, Antenna gain level (max): 5 dBi. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi data rate (max): 1300 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Connectivity technology: Wired & Wireless, Ethernet LAN data rates: 10,100,1000 Mbit/s, Console port: RJ-45. Form factor: Desktop



Teknisk specifikation

Firewall throughput	5 Gbit/s
Firewall throughput	7.5 Mpps
Firewall (UDP 1518) throughput	5 Gbit/s
IPSec VPN throughput	4.4 Gbit/s
IPS/IDS throughput	1000 Mbit/s
SSL inspection throughput	310 Mbit/s
Default number of virtual firewalls	10
Maximum firewall connections per second	35000
Maximum firewall connections	700000
Maximum number of virtual firewalls	10
Security policies (max)	5000
Firewall latency	4 µs

Heat dissipation	56.64 BTU/h
Antenna gain level (max)	5 dBi
MIMO	Yes
Reset button	Yes
Noise level	0 dB
Certification	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, ICSA Labs

Wi-Fi	Yes
Wi-Fi standards	802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)	1300 Mbit/s
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
VPN tunnels quantity	250
Active TCP connections (max)	700000
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)

Firewall security	Yes
Domains quantity	10

LED indicators	Yes

Connectivity technology	Wired & Wireless
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	3
Ethernet LAN data rates	10,100,1000 Mbit/s
Console port	RJ-45
Number of console ports	1
WAN connection	Ethernet (RJ-45)

Form factor	Desktop

AC input voltage	100-240 V
AC input frequency	50/60 Hz
Input current	0.2 A
Power consumption (typical)	14.6 W
Power consumption (max)	16.6 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-35 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 2250 m

Width	216 mm
Depth	160 mm
Height	38.5 mm

Firewall throughput	5000 Mbit/s
